NSN 5320-00-959-1780
Part Details | PIN-RIVET
5320-00-959-1780 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Alternate Parts: HS62816, HS62-8-16, 3M95816, 3M95-8-16, HS62816, HS62-8-16, HS62816, HS62-8-16, HS62816, HS62-8-16, 5320-00-959-1780, 00-959-1780, 5320009591780, 009591780
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1962 | 00-959-1780 | 67165 ( PIN-RIVET ) |
REFERENCE DRAWINGS & PICTURES

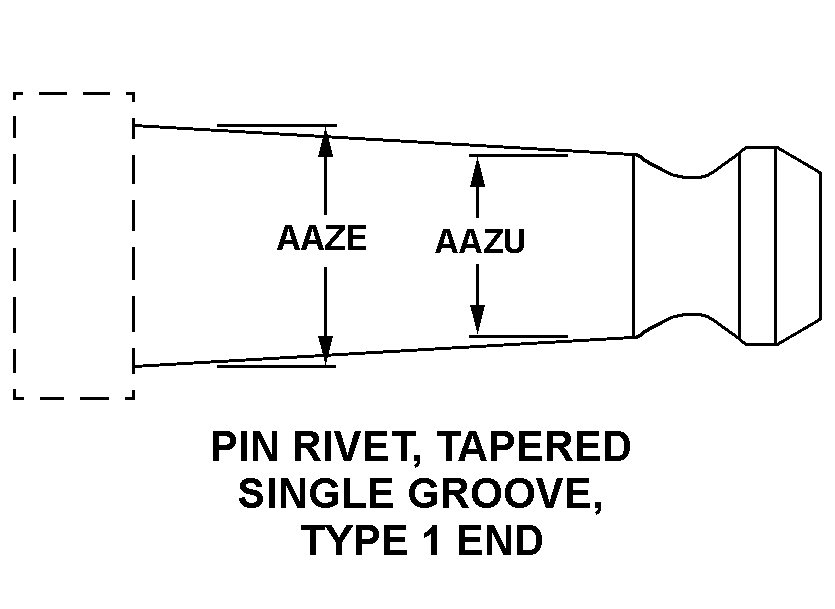

PIN RIVET, TAPERED SINGLE GROOVE, TYPE 1 END
Cross Reference | NSN 5320-00-959-1780
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HS62-8-16 | 92215 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| 3M95-8-16 | 76301 | BOEING COMPANY, THEDBA BOEING |
| HS62-8-16 | 73197 | HI-SHEAR CORPORATION |
| HS62-8-16 | L4528 | LISI AEROSPACE CANADA CORPDIV HI SHEAR HOLDINGS INC |
| HS62-8-16 | 06725 | SPS TECHNOLOGIES, LLCDBA AIR INDUSTRIES |
Technical Data | NSN 5320-00-959-1780
| Characteristic | Specifications |
|---|---|
| SHEAR STRENGTH | 125000 SINGLE POUNDS PER SQUARE INCH |
| HEAD HEIGHT | 0.059 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.387 INCHES MINIMUM AND 0.412 INCHES MAXIMUM |
| SHANK STYLE | PIN RIVET, TAPERED SINGLE GROOVE, TYPE 1 END |
| SHANK DIAMETER | 0.2487 INCHES MINIMUM AND 0.2492 INCHES MAXIMUM |
| GRIP LENGTH | 1.000 INCHES MAXIMUM |
