NSN 5320-00-903-3962
Part Details | RIVET CAP
5320-00-903-3962 A closure designed to fit over the end of a split or tubular rivet shank and into which the shank end is crimped in assembly. It provides greater strength and gives the appearance of a solid rivet at the clinched end. The closure may have a knurled shank and a head with its bottom recessed to fit over a hollow rivet head. It is designed to be pressed or driven through the head of a hollow rivet when a closed assembly is required.
Alternate Parts: 8589839, 5320-00-903-3962, 00-903-3962, 5320009033962, 009033962
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 10, 1966 | 00-903-3962 | 09731 ( CAP, RIVET ) |

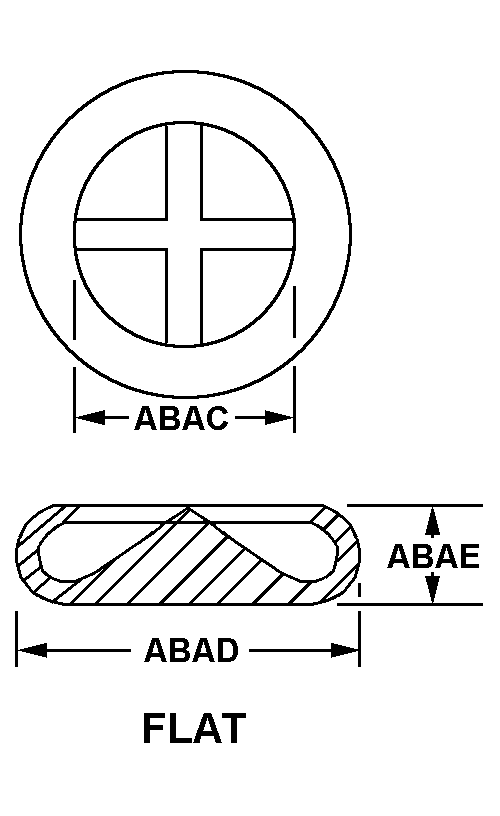

REFERENCE DRAWINGS & PICTURES
FLAT
Cross Reference | NSN 5320-00-903-3962
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8589839 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5320-00-903-3962
| Characteristic | Specifications |
|---|---|
| CAP STYLE | FLAT |
| CAP INSIDE DIAMETER | 1.125 INCHES NOMINAL |
| CAP OUTSIDE DIAMETER | 1.938 INCHES NOMINAL |
| CAP OVERALL HEIGHT | 1.188 INCHES NOMINAL |
| SPECIAL FEATURES | USED ON 2350-00-140-5151 |
