NSN 5310-00-073-9937
Part Details | BARREL PLAIN NUT
5310-00-073-9937 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. Excludes NUT (1), PLAIN, ROUND.
Alternate Parts: 8213064, 8213064, 8213064, 5310-00-073-9937, 00-073-9937, 5310000739937, 000739937
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-073-9937 | 21926 ( NUT, PLAIN, BARREL ) |

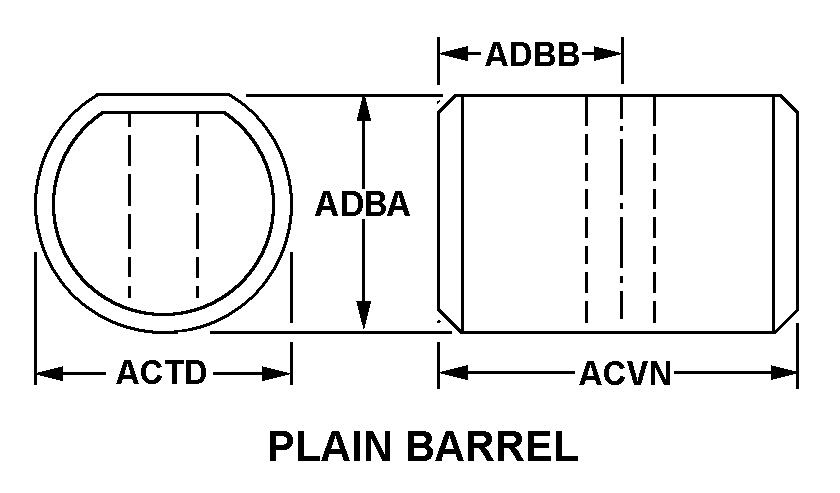

REFERENCE DRAWINGS & PICTURES
PLAIN BARREL
Cross Reference | NSN 5310-00-073-9937
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8213064 | 24617 | GENERAL MOTORS CORP |
| 8213064 | 72915 | GENERAL MOTORS CORPELECTRO-MOTIVE DIV |
| 8213064 | 39VG9 | PROGRESS RAIL LOCOMOTIVE INC.DBA EMD |
Technical Data | NSN 5310-00-073-9937
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 1.250 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN BARREL |
| NUT DIAMETER | 2.250 INCHES NOMINAL |
| NUT LENGTH | 1.687 INCHES NOMINAL |
| BARREL HEIGHT | 2.296 INCHES NOMINAL |
