NSN 5310-00-073-0131
Part Details | SPLINE SELF-LOCKING NUT
5310-00-073-0131 A nut having an externally splined sleeve, which holds it in position when forced into a hole of slightly smaller diameter. An integral feature is incorporated for locking.
Alternate Parts: RPN264 SCL, RPN-2-64 SCL, 5310000730131, 10087974, 7341617, 5310-00-073-0131, 00-073-0131, 5310000730131, 000730131
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-073-0131 | 15893 ( NUT, SELF-LOCKING, SPLINE ) |

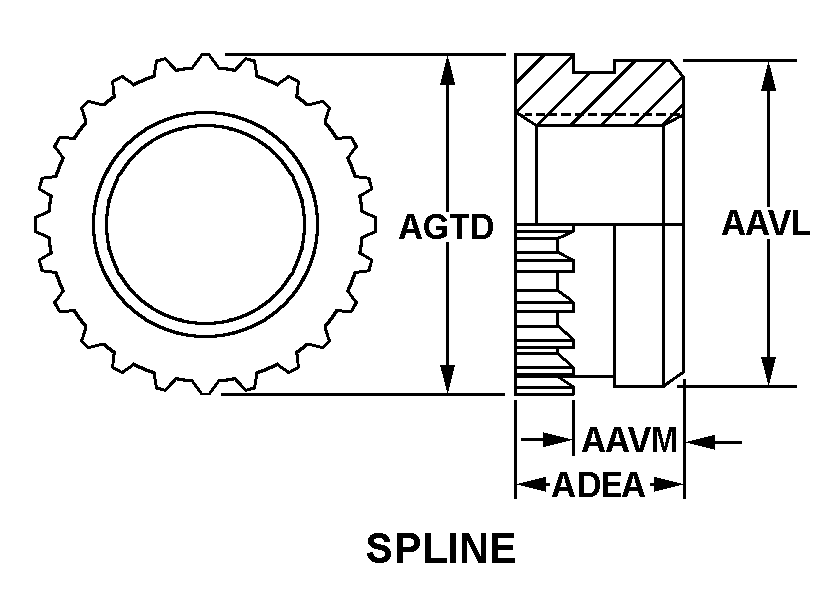

REFERENCE DRAWINGS & PICTURES
SPLINE
Cross Reference | NSN 5310-00-073-0131
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RPN-2-64 SCL | 83324 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| 5310000730131 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 10087974 | A486G | NIMIKKEISTOKESKUS NCB FINLAND |
| 7341617 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5310-00-073-0131
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD QUANTITY PER INCH | 64 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| HARDNESS RATING | 44.0 ROCKWELL C MINIMUM AND 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | SPLINE |
| PILOT DIAMETER | 0.125 INCHES NOMINAL |
| PILOT LENGTH | 0.100 INCHES NOMINAL |
| NUT DIAMETER | 0.245 INCHES MINIMUM AND 0.275 INCHES MAXIMUM |
| NUT HEIGHT | 0.165 INCHES MINIMUM AND 0.195 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
