NSN 5310-00-071-8933
Part Details | WING SELF-LOCKING NUT
5310-00-071-8933 A nut having wings designed for manual turning without driver or wrench with an integral feature incorporated for locking on the threads of a mating member.
Alternate Parts: WC066, 5310-00-071-8933, 00-071-8933, 5310000718933, 000718933
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 25, 1967 | 00-071-8933 | 05283 ( NUT, SELF-LOCKING, WING ) |

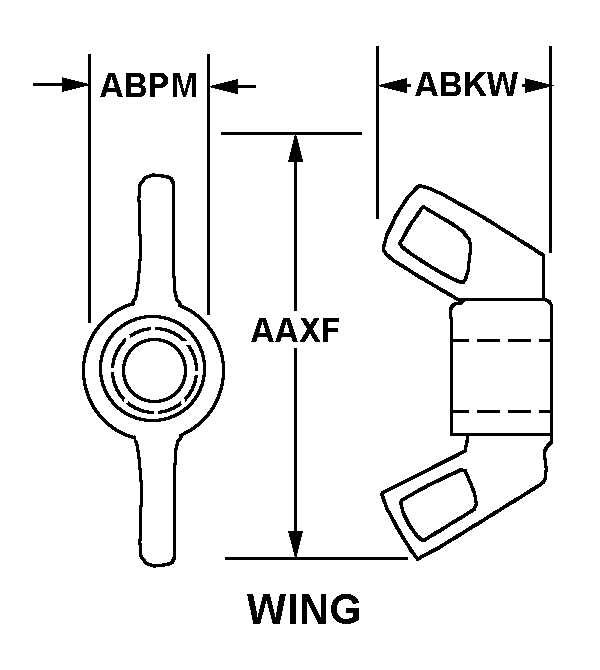

REFERENCE DRAWINGS & PICTURES
WING
Cross Reference | NSN 5310-00-071-8933
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WC066 | 019L2 | FITZ AEROSPACE, LLCDBA ESNA |
Technical Data | NSN 5310-00-071-8933
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | WING |
| WING SPREAD WIDTH | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.718 INCHES NOMINAL |
| BODY DIAMETER | 0.562 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| FABRICATION METHOD | CAST |
