NSN 5310-00-069-1042
Part Details | SHEET SPRING NUT
5310-00-069-1042 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Alternate Parts: NAS39541, NAS395-4-1, 5310-00-069-1042, 00-069-1042, 5310000691042, 000691042
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-069-1042 | 01865 ( NUT, SHEET SPRING ) |
REFERENCE DRAWINGS & PICTURES

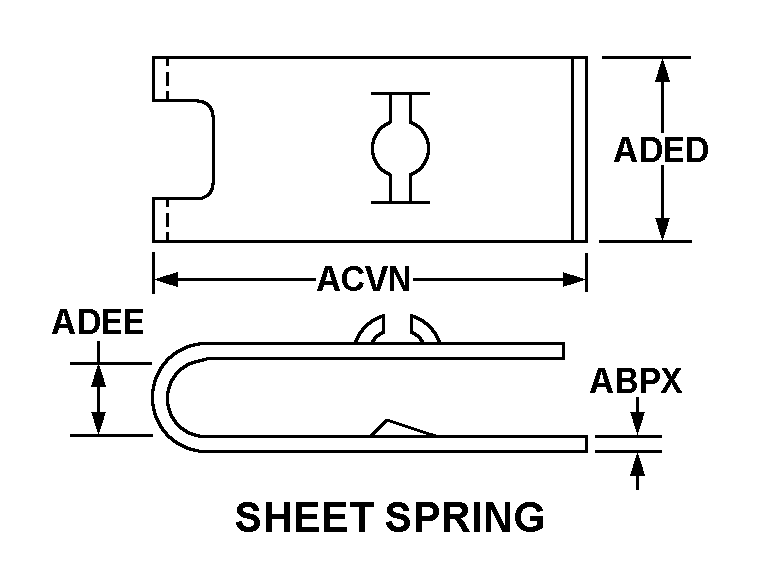

SHEET SPRING
Cross Reference | NSN 5310-00-069-1042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS395-4-1 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5310-00-069-1042
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.138 INCHES NOMINAL |
| NUT STYLE | SHEET SPRING |
| MATERIAL THICKNESS | 0.023 INCHES MINIMUM AND 0.027 INCHES MAXIMUM |
| NUT LENGTH | 0.515 INCHES NOMINAL |
| NUT WIDTH | 0.500 INCHES NOMINAL |
| PANEL THICKNESS | 0.060 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
