NSN 5310-00-066-1958
Part Details | KEY WASHER
5310-00-066-1958 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Alternate Parts: 32450343, 32-45034-3, 169729, 169729, 168852, 1688-52, 169729, 5310-00-066-1958, 00-066-1958, 5310000661958, 000661958
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-066-1958 | 01869 ( WASHER, KEY ) |

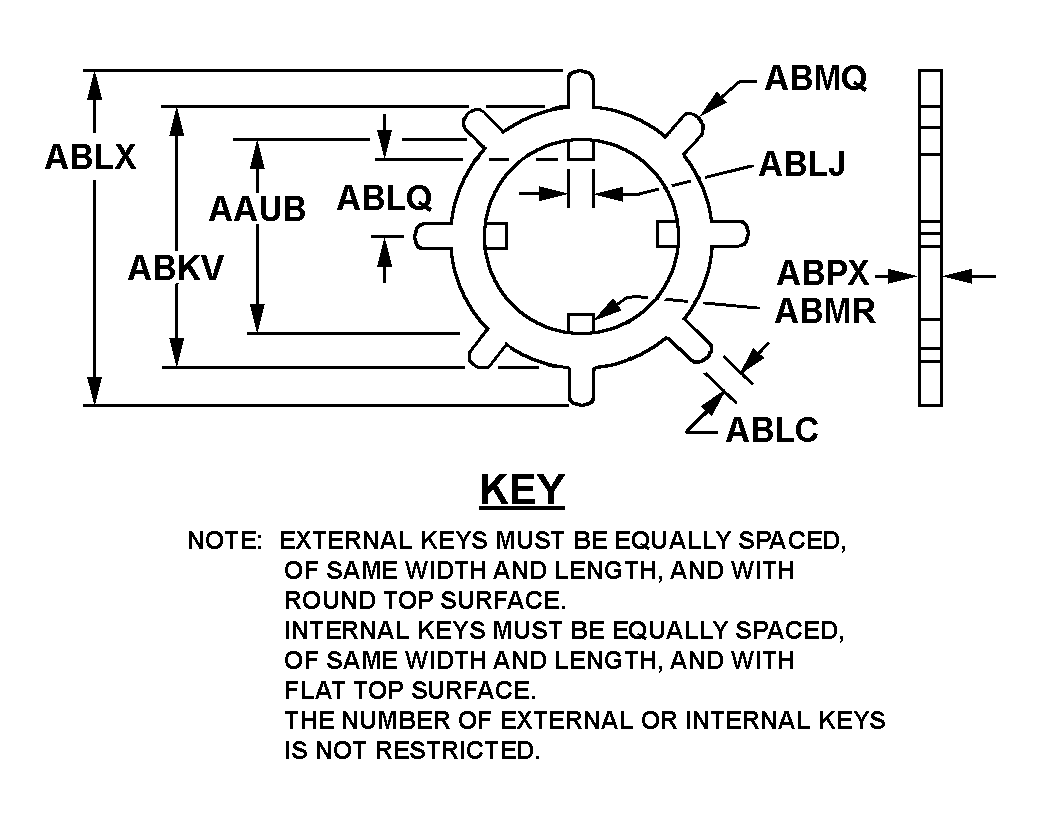

REFERENCE DRAWINGS & PICTURES
KEY
Cross Reference | NSN 5310-00-066-1958
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32-45034-3 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 169729 | 17576 | GOODRICH CORPDBA GOODRICH CORP |
| 169729 | 13002 | GOODRICH CORPORATIONDBA GOODRICH LANDING GEAR DIVISION |
| 1688-52 | 13002 | GOODRICH CORPORATIONDBA GOODRICH LANDING GEAR DIVISION |
| 169729 | 55284 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5310-00-066-1958
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KEY |
| EXTERNAL KEY QUANTITY | 1 |
| INTERNAL KEY QUANTITY | 1 |
| HOLE DIAMETER | 1.440 INCHES MINIMUM AND 1.450 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 2.320 INCHES NOMINAL |
| EXTERNAL STRAIGHT KEY WIDTH | 0.400 INCHES NOMINAL |
| INTERNAL STRAIGHT KEY WIDTH | 0.160 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO TOP OF INTERNAL KEY | 0.630 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| OVERALL DISTANCE INCLUDING KEYS | 2.800 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.120 INCHES NOMINAL |
