NSN 5310-00-065-8811
Part Details | CLINCH PLAIN NUT
5310-00-065-8811 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole.
Alternate Parts: 565900280, 565-900-280, 5310-00-065-8811, 00-065-8811, 5310000658811, 000658811
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-065-8811 | 01860 ( NUT, PLAIN, CLINCH ) |

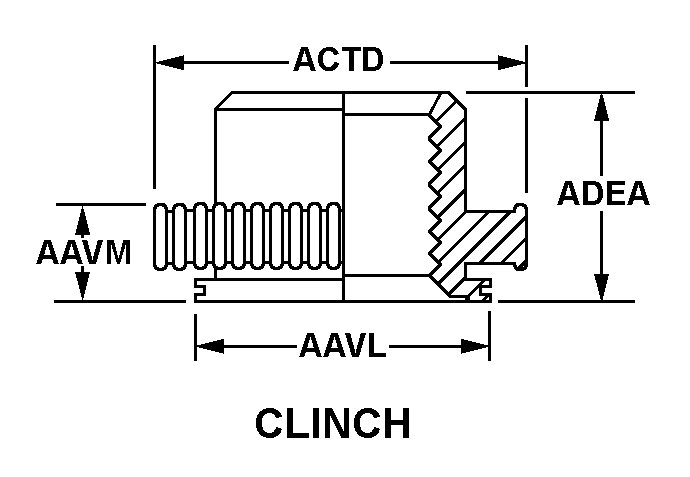

REFERENCE DRAWINGS & PICTURES
CLINCH
Cross Reference | NSN 5310-00-065-8811
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 565-900-280 | 15090 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5310-00-065-8811
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | CLINCH |
| PILOT DIAMETER | 0.062 INCHES NOMINAL |
| PILOT LENGTH | 0.188 INCHES NOMINAL |
| NUT DIAMETER | 0.188 INCHES NOMINAL |
| NUT HEIGHT | 0.250 INCHES NOMINAL |
