NSN 5310-00-060-9243
Part Details | INTERNAL WRENCHING PLAIN NUT
5310-00-060-9243 A cylindrical-shaped nut, the end opposite the bearing surface being designed with an internal socket or splines for use with an inserted wrench.
Alternate Parts: 4196504, 419650-4, 5310-00-060-9243, 00-060-9243, 5310000609243, 000609243
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 20, 1967 | 00-060-9243 | 04893 ( NUT, PLAIN, INTERNAL WRENCHING ) |
REFERENCE DRAWINGS & PICTURES

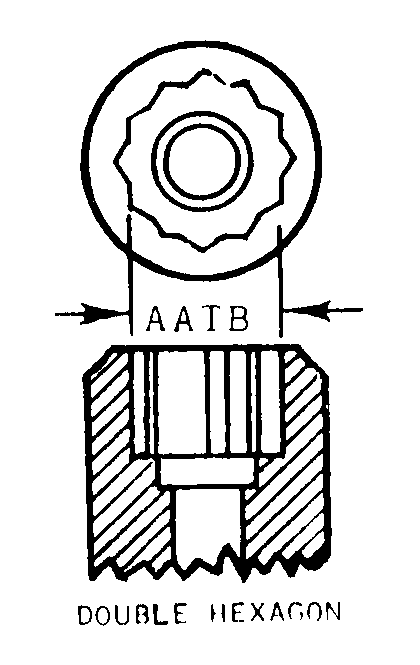

DOUBLE HEXAGON

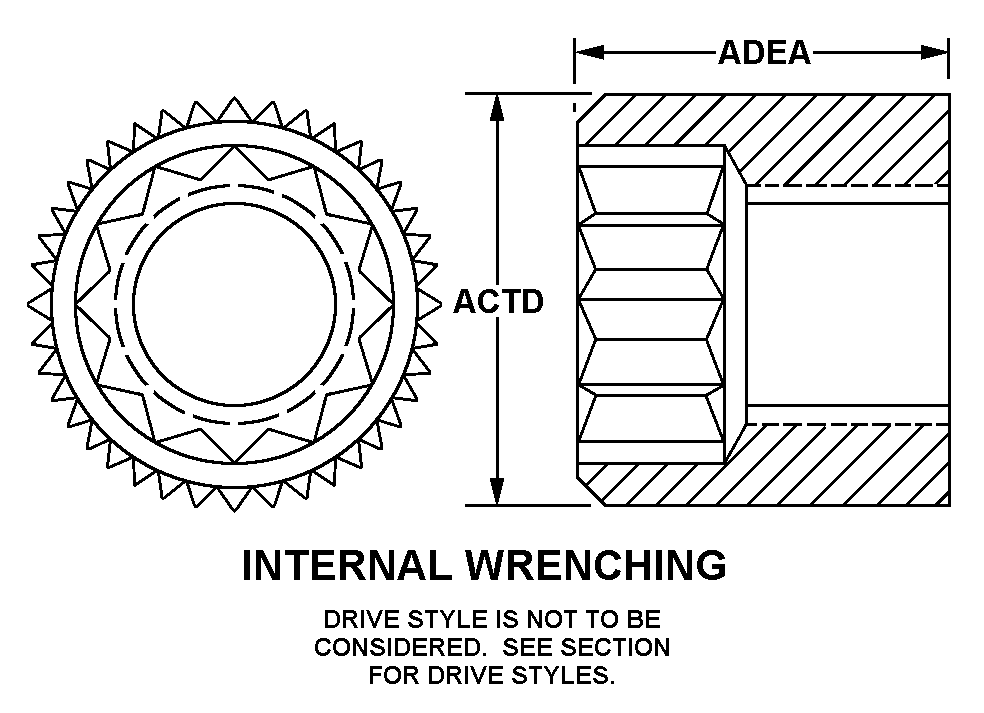

INTERNAL WRENCHING
Cross Reference | NSN 5310-00-060-9243
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 419650-4 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5310-00-060-9243
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | INTERNAL WRENCHING |
| NUT DIAMETER | 0.275 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| NUT HEIGHT | 0.266 INCHES MINIMUM AND 0.273 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | DOUBLE HEXAGON |
| WIDTH BETWEEN FLATS | 0.187 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
