NSN 5310-00-059-8374
Part Details | LOCK WASHER
5310-00-059-8374 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Alternate Parts: RLA21SM4.213, 12Z30025, 12Z3002-5, 5310-00-059-8374, 00-059-8374, 5310000598374, 000598374
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 08, 1967 | 00-059-8374 | 14218 ( WASHER, LOCK ) |
REFERENCE DRAWINGS & PICTURES

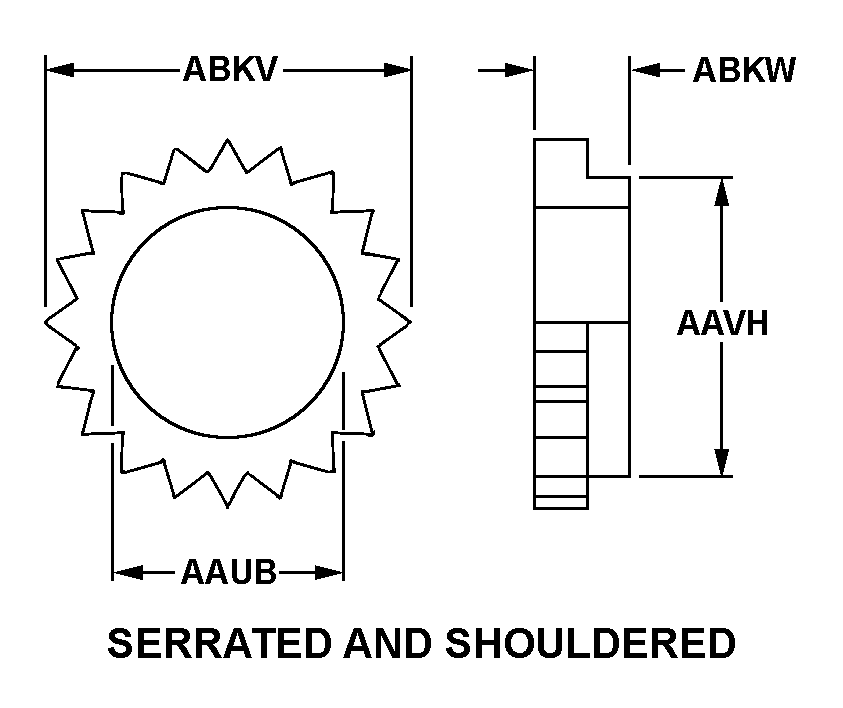

SERRATED AND SHOULDERED
Cross Reference | NSN 5310-00-059-8374
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RLA21SM4.213 | 83324 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| 12Z3002-5 | 94135 | NAVAL ORDNANCE STANDARDS |
Technical Data | NSN 5310-00-059-8374
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SERRATED AND SHOULDERED |
| HOLE DIAMETER | 0.213 INCHES MINIMUM AND 0.216 INCHES MAXIMUM |
| SHOULDER DIAMETER | 0.298 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.354 INCHES NOMINAL |
| OVERALL HEIGHT | 0.057 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
