NSN 5310-00-059-5262
Part Details | CLINCH PLAIN NUT
5310-00-059-5262 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole.
Alternate Parts: 9626CA04401B, 9626CA0440-1B, 9626CA04401B, 9626CA0440-1B, 53235244, 532352-44, 5310-00-059-5262, 00-059-5262, 5310000595262, 000595262
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 18, 1972 | 00-059-5262 | 01860 ( NUT, PLAIN, CLINCH ) |

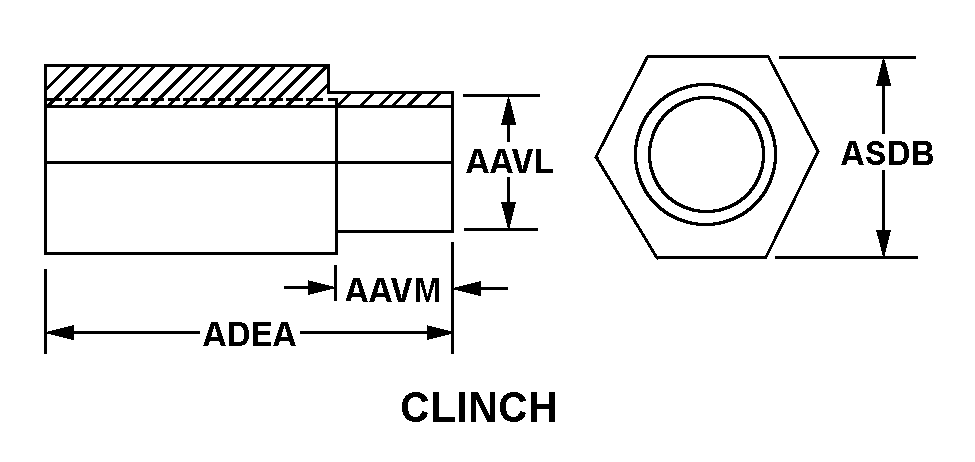

REFERENCE DRAWINGS & PICTURES
CLINCH
Cross Reference | NSN 5310-00-059-5262
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9626CA0440-1B | 1YGB8 | CAREY MANUFACTURING COMPANY, INC.DBA AMATOM ELECTRONIC HARDWARE |
| 9626CA0440-1B | 06540 | NEW HAVEN MFG CORPAMATOM ELECTRONIC HARDWARE DIV |
| 532352-44 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5310-00-059-5262
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | CLINCH |
| PILOT DIAMETER | 0.185 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |
| PILOT LENGTH | 0.135 INCHES NOMINAL |
| NUT HEIGHT | 0.385 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
