NSN 5310-00-058-5811
Part Details | WELDING PLAIN NUT
5310-00-058-5811 A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted.
Alternate Parts: 585811, 585811, 5310-00-058-5811, 00-058-5811, 5310000585811, 000585811
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-058-5811 | 15885 ( NUT, PLAIN, WELDING ) |

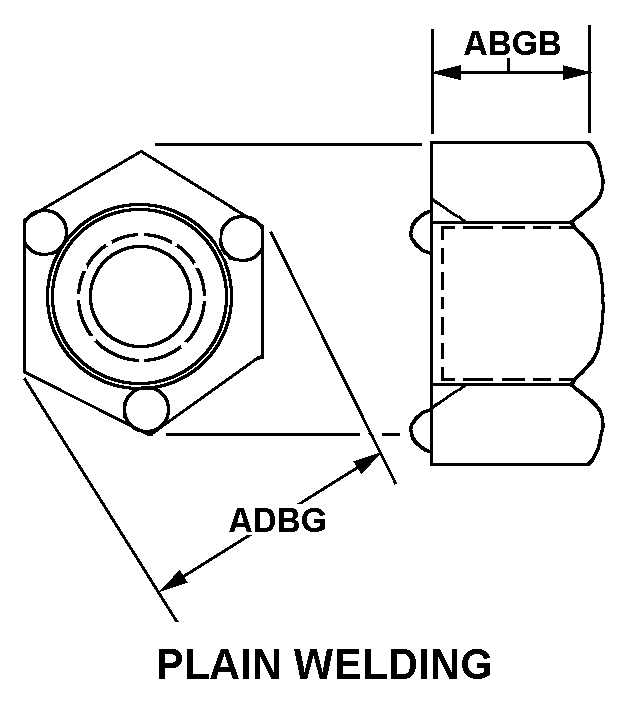

REFERENCE DRAWINGS & PICTURES
PLAIN WELDING
Cross Reference | NSN 5310-00-058-5811
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 585811 | 21450 | ARMY WEAPONS COMMANDATTN AMSWE-REE-S |
| 585811 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5310-00-058-5811
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN WELDING |
| WIDTH ACROSS CORNERS | 0.750 INCHES NOMINAL |
| NUT THICKNESS | 0.250 INCHES NOMINAL |
