NSN 5306-00-176-0793
Part Details | BOLT BLANK
5306-00-176-0793 A cylindrical device having a head, eye or hook; similar to a BOLT, MACHINE; BOLT, EYE or BOLT, HOOK, and the like, but without threads, and normally intended for a subsequent threading operation.
Alternate Parts: 1174871, 117487-1, 5306-00-176-0793, 00-176-0793, 5306001760793, 001760793
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 19, 1970 | 00-176-0793 | 01846 ( BOLT BLANK ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON EXTENDED WASHER

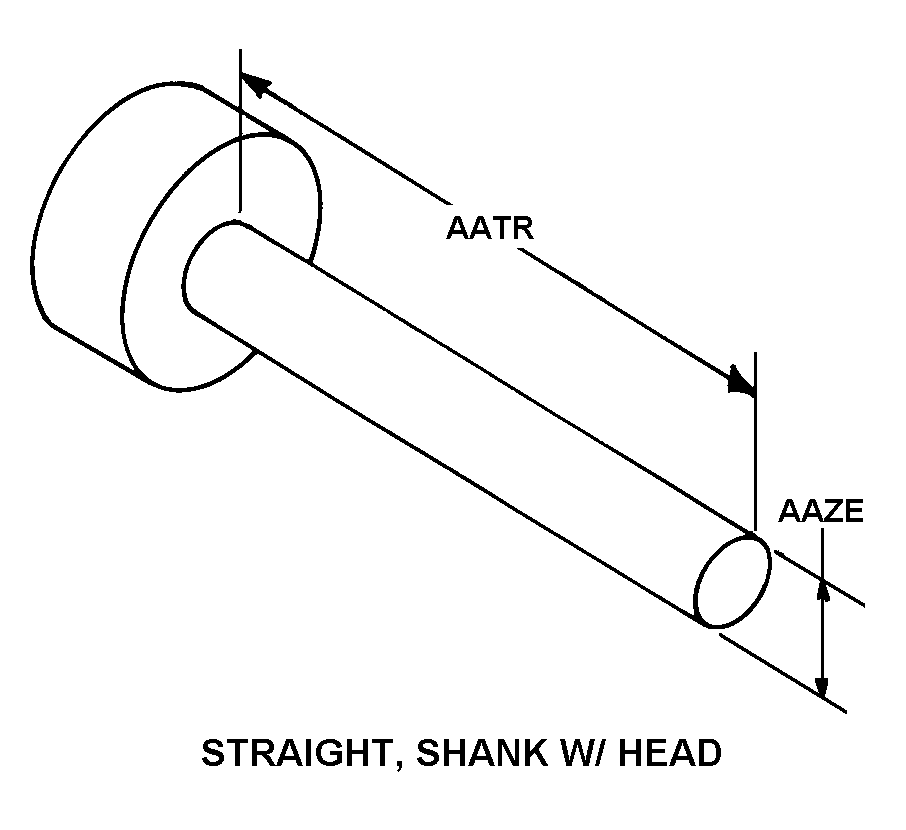

STRAIGHT, SHANK W/HEAD
Cross Reference | NSN 5306-00-176-0793
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 117487-1 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5306-00-176-0793
| Characteristic | Specifications |
|---|---|
| FASTENER LENGTH | 4.750 INCHES NOMINAL |
| STYLE DESIGNATOR | STRAIGHT, SHANK W/HEAD |
| SHANK LENGTH | 4.125 INCHES NOMINAL |
| SHANK DIAMETER | 0.125 INCHES NOMINAL |
| HEAD STYLE | 3 HEXAGON EXTENDED WASHER |
| HEAD HEIGHT | 0.625 INCHES NOMINAL |
| HEAD LENGTH | 0.255 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.033 INCHES NOMINAL |
| SPECIAL FEATURES | DRILLED HOLE 0.109 IN. NOM DIA DRILLED PERPENDICULAR TO CENTERLINE IN HEAD |
