NSN 5306-00-157-9224
Part Details | ASSEMBLED WASHER BOLT
5306-00-157-9224 A BOLT, MACHINE on which has been assembled one or more nonremovable washers. See also SCREW, ASSEMBLED WASHER.
Alternate Parts: T9160524, T-9160524, 426505PC1, 5306-00-157-9224, 00-157-9224, 5306001579224, 001579224
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-157-9224 | 06659 ( BOLT, ASSEMBLED WASHER ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON

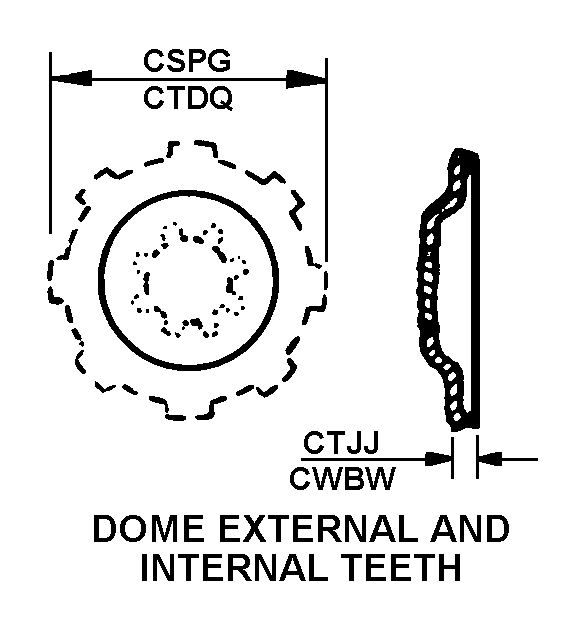

DOME EXTERNAL AND INTERNAL TEETH
DOME EXTERNAL AND INTERNAL TEETH
Cross Reference | NSN 5306-00-157-9224
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T-9160524 | 89954 | BAE SYSTEMS CONTROLS INC. |
| 426505PC1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5306-00-157-9224
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.313 INCHES NOMINAL |
| FASTENER LENGTH | 2.188 INCHES NOMINAL |
| HEAD STYLE | HEXAGON |
| HEAD HEIGHT | 0.625 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.750 INCHES NOMINAL |
| WASHER QUANTITY | 1 |
| PRIMARY WASHER STYLE | DOME EXTERNAL AND INTERNAL TEETH |
| PRIMARY WASHER OUTSIDE DIAMETER | 1.375 INCHES NOMINAL |
| PRIMARY WASHER MATERIAL THICKNESS | 0.312 INCHES NOMINAL |
