NSN 5305-00-207-1510
Part Details | EYE SCREW
5305-00-207-1510 A fastening device with one end formed in the shape of an eye and the other end threaded with a lag or wood screw type of thread.
Alternate Parts: FFS88, 5305-00-207-1510, 00-207-1510, 5305002071510, 002071510
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-207-1510 | 12947 ( SCREW, EYE ) |
REFERENCE DRAWINGS & PICTURES
NARROW FLUTE (TYPE E)

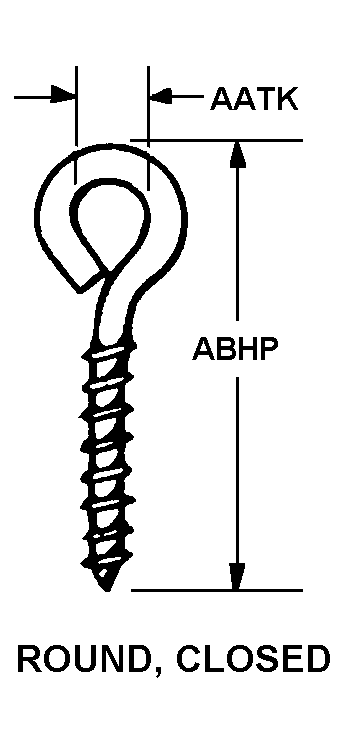

ROUND, CLOSED
Cross Reference | NSN 5305-00-207-1510
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFS88 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5305-00-207-1510
| Characteristic | Specifications |
|---|---|
| NONMACHINE THREAD STYLE | 5 NARROW FLUTE (TYPE E) |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.216 INCHES |
| STYLE DESIGNATOR | ROUND, CLOSED |
| EYE INSIDE DIAMETER | 0.188 INCHES NOMINAL |
| SPECIAL FEATURES | FASTENER LENGTH IS 0.940 INCHES |
| NONDEFINITIVE SPEC/STD DATA | A GRADE AND 3 CLASS |
