NSN 5305-00-207-0578
Part Details | EYE SCREW
5305-00-207-0578 A fastening device with one end formed in the shape of an eye and the other end threaded with a lag or wood screw type of thread.
Alternate Parts: SCD1794, 5305-00-207-0578, 00-207-0578, 5305002070578, 002070578
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-207-0578 | 12947 ( SCREW, EYE ) |
REFERENCE DRAWINGS & PICTURES
NARROW FLUTE (TYPE E)

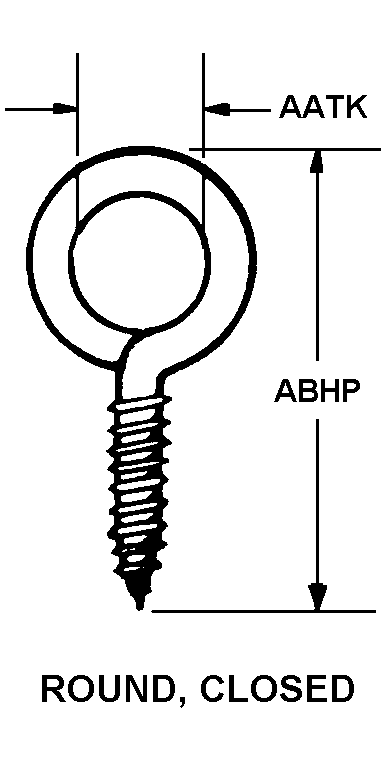

ROUND, CLOSED
Cross Reference | NSN 5305-00-207-0578
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SCD1794 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5305-00-207-0578
| Characteristic | Specifications |
|---|---|
| NONMACHINE THREAD STYLE | 3 NARROW FLUTE (TYPE E) |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.138 INCHES |
| STYLE DESIGNATOR | ROUND, CLOSED |
| EYE INSIDE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 1.526 INCHES NOMINAL |
