NSN 5305-00-149-9711
Part Details | SETSCREW
5305-00-149-9711 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Alternate Parts: P16161, 5305-00-149-9711, 00-149-9711, 5305001499711, 001499711
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-149-9711 | 06672 ( SETSCREW ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON

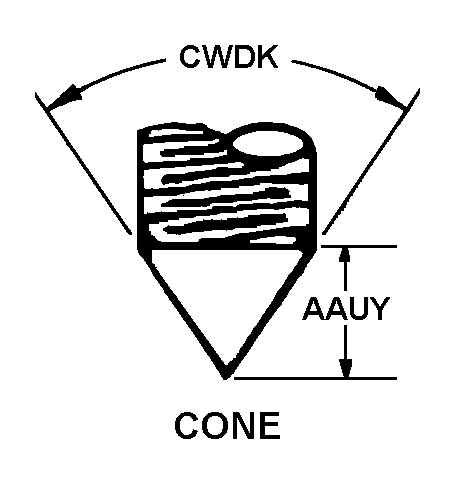

CONE
CROSS RECESS TYPE 1
Cross Reference | NSN 5305-00-149-9711
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P16161 | 06848 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5305-00-149-9711
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.219 INCHES MAXIMUM |
| FASTENER LENGTH | 0.219 INCHES NOMINAL |
| HEAD STYLE | 01 HEXAGON |
| INTERNAL DRIVE STYLE | CROSS RECESS TYPE 1 |
| POINT STYLE | CONE |
| POINT LENGTH | 0.031 INCHES NOMINAL |
| POINT CHAMFER ANGLE | 90.0 DEGREES NOMINAL |
