NSN 5305-00-143-1709
Part Details | MACHINE SCREW
5305-00-143-1709 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Alternate Parts: 210113301, 2-101-133-01, 5305-00-143-1709, 00-143-1709, 5305001431709, 001431709
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 04, 1968 | 00-143-1709 | 06657 ( SCREW, MACHINE ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON
CROSS RECESS TYPE 1

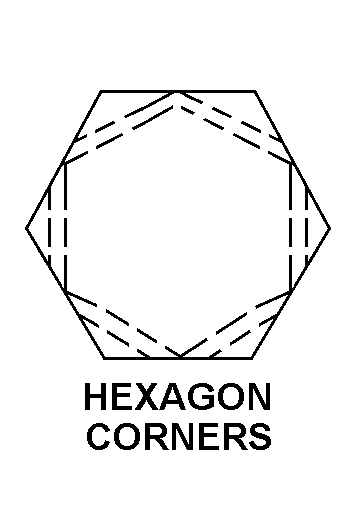

HEXAGON CORNERS
Cross Reference | NSN 5305-00-143-1709
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-101-133-01 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5305-00-143-1709
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 36 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.150 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |
| FASTENER LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MS5735 ASSN STD SINGLE MATERIAL RESPONSE |
| HARDNESS RATING | 62.5 ROCKWELL B MINIMUM AND 69.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 130000 POUNDS PER SQUARE INCH |
| HEAD STYLE | HEXAGON |
| HEAD HEIGHT | 0.080 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.276 INCHES MINIMUM AND 0.282 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | CROSS RECESS TYPE 1 |
| HEAD HOLE CONFIGURATION STYLE | HEXAGON CORNERS |
| HOLE DIAMETER | 0.038 INCHES NOMINAL |
| SPECIAL FEATURES | MAJOR DIA OF THD MODIFIED 0.1620 IN. MIN,0.1640 IN. MAX,0.062 DIA HOLE DRILLED THRU LONGITUDINAL AXIS OF HEAD 0.080 IN. DEEP |
| TEST DATA DOCUMENT | P6808-P-191547 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
