NSN 5305-00-133-3812
Part Details | MACHINE SCREW
5305-00-133-3812 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Alternate Parts: 5322141, 532214-1, 5305-00-133-3812, 00-133-3812, 5305001333812, 001333812
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 06, 1969 | 00-133-3812 | 06657 ( SCREW, MACHINE ) |
REFERENCE DRAWINGS & PICTURES
DISHED HEXAGON
CROSS RECESS TYPE 1

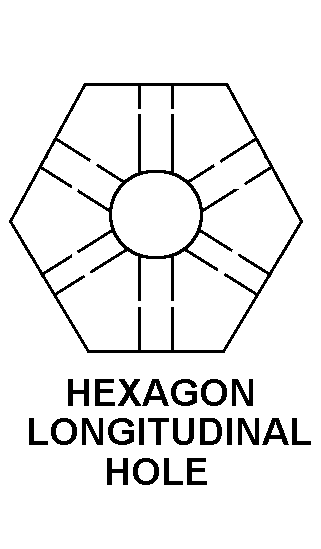

HEXAGON LONGITUDINAL HOLE
Cross Reference | NSN 5305-00-133-3812
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 532214-1 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5305-00-133-3812
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.140 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| FASTENER LENGTH | 0.170 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP E4340 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | G-I-526,CL 8 FED SPEC ALL TREATMENT RESPONSES |
| HEAD STYLE | 8 DISHED HEXAGON |
| HEAD DIAMETER | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| HEAD HEIGHT | 0.070 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | 0 CROSS RECESS TYPE 1 |
| HEAD HOLE CONFIGURATION STYLE | HEXAGON LONGITUDINAL HOLE |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.032 INCHES NOMINAL |
