NSN 5305-00-123-2668
Part Details | SETSCREW
5305-00-123-2668 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Alternate Parts: 25193746, 2519374-6, 5305-00-123-2668, 00-123-2668, 5305001232668, 001232668
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 13, 1968 | 00-123-2668 | 06672 ( SETSCREW ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON
FLAT

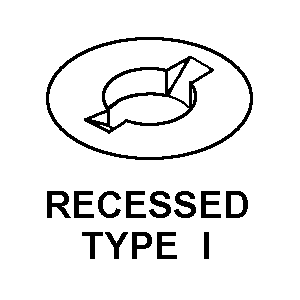

RECESSED TYPE I
Cross Reference | NSN 5305-00-123-2668
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2519374-6 | 07187 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5305-00-123-2668
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD DIAMETER | 0.406 INCHES |
| THREAD QUANTITY PER INCH | 64 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.107 INCHES MINIMUM AND 0.117 INCHES MAXIMUM |
| FASTENER LENGTH | 0.107 INCHES MINIMUM AND 0.117 INCHES MAXIMUM |
| HEAD STYLE | 01 HEXAGON |
| INTERNAL DRIVE STYLE | RECESSED TYPE I |
| POINT STYLE | 9 FLAT |
