NSN 5305-00-109-0261
Part Details | ASSEMBLED WASHER SCREW
5305-00-109-0261 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Alternate Parts: 197227A1, 5305-00-109-0261, 00-109-0261, 5305001090261, 001090261
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 17, 1972 | 00-109-0261 | 06660 ( SCREW, ASSEMBLED WASHER ) |
REFERENCE DRAWINGS & PICTURES
HEXAGON
CROSS RECESS TYPE II

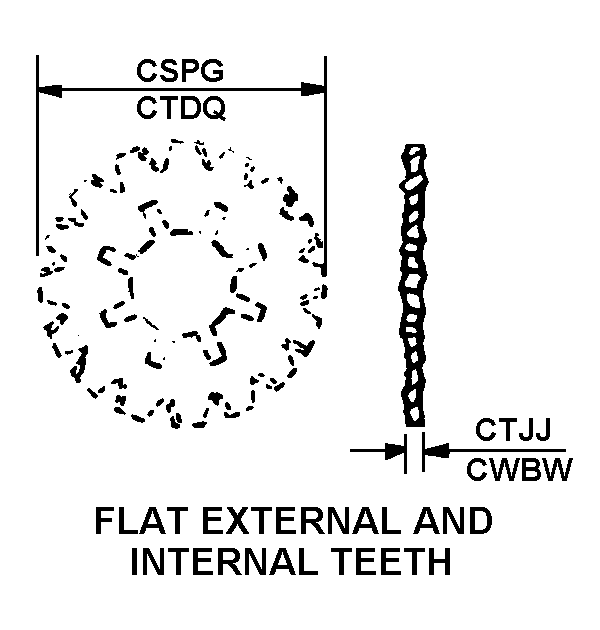

FLAT EXTERNAL AND INTERNAL TEETH
FLAT EXTERNAL AND INTERNAL TEETH
Cross Reference | NSN 5305-00-109-0261
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 197227A1 | 05168 | ELSAG BAILEY INC |
Technical Data | NSN 5305-00-109-0261
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.265 INCHES NOMINAL |
| FASTENER LENGTH | 0.328 INCHES NOMINAL |
| HEAD STYLE | HEXAGON |
| HEAD HEIGHT | 0.109 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.307 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | 1 CROSS RECESS TYPE II |
| WASHER QUANTITY | 1 |
| PRIMARY WASHER STYLE | FLAT EXTERNAL AND INTERNAL TEETH |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.870 INCHES NOMINAL |
| PRIMARY WASHER MATERIAL THICKNESS | 0.050 INCHES NOMINAL |
