NSN 5130-01-343-1214
Part Details | HYDRAULIC PULLER
5130-01-343-1214 A puller operated by a hydraulic force. The hydraulic force may be an integral part of the puller, or supplied from an external source. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL.
Alternate Parts: PHES116, 5130-01-343-1214, 01-343-1214, 5130013431214, 013431214
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | AUG 06, 1991 | 01-343-1214 | 36872 ( PULLER, HYDRAULIC ) |
REFERENCE DRAWINGS & PICTURES

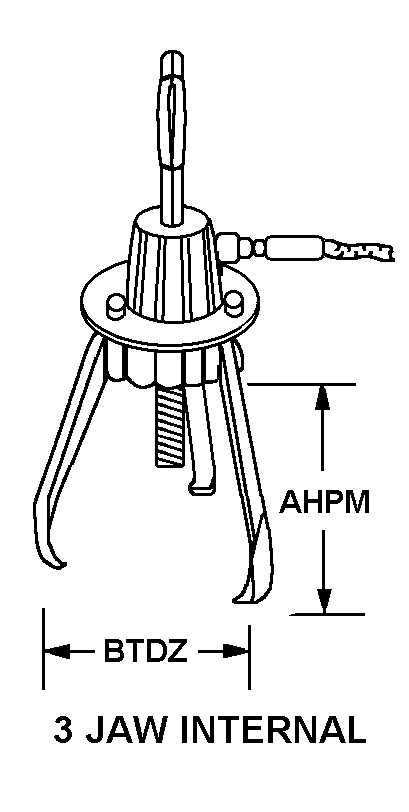

3 JAW INTERNAL
Cross Reference | NSN 5130-01-343-1214
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PHES116 | 58186 | POSI LOCK PULLER, INC |
Technical Data | NSN 5130-01-343-1214
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 3 JAW INTERNAL |
| SPREAD RANGE | 3.000 INCHES MINIMUM AND 25.000 INCHES MAXIMUM |
| LOAD CAPACITY | 50.0 TONS |
| SPECIAL FEATURES | FURNISHED WITH 50 TON PULLER,PH116;ELECTRIC PUMP,PH2022;10FT HOSE, PH927; GAUGE,PH2535;ADAPTER, PH3; 2 SETS OF COUPLERS,PH604; SET OF 6 RAM POINTS,PH50-8; STORAGE TRANSPORT,PT2550;LIFT PLATE,PH11652 |
