NSN 5130-01-322-7805
Part Details | POWER HAMMER CHISEL
5130-01-322-7805 A cutting tool having a formed shank designed for use with HAMMER, ELECTRIC, PORTABLE or HAMMER, PNEUMATIC, PORTABLE. Excludes masonry drills and all noncutting items, such as calking, beading, fulling, butting tools, and the like.
Alternate Parts: C9A, C-9A, C9A, C-9A, 5130-01-322-7805, 01-322-7805, 5130013227805, 013227805
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JUL 13, 1990 | 01-322-7805 | 05211 ( CHISEL, POWER HAMMER ) |
REFERENCE DRAWINGS & PICTURES

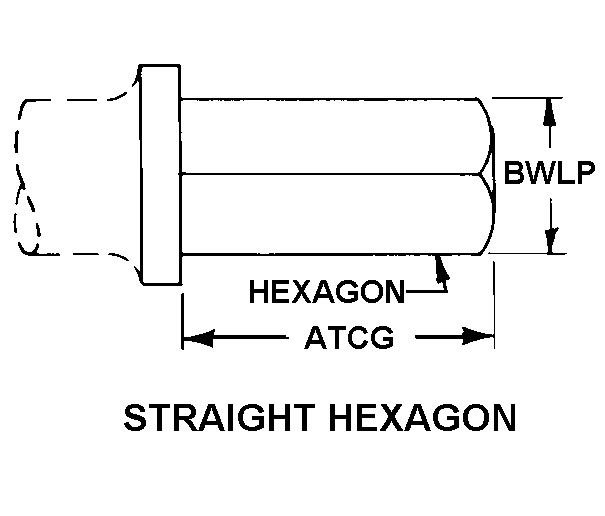

STRAIGHT HEXAGON
WIDE
Cross Reference | NSN 5130-01-322-7805
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C-9A | 03306 | AMPCO METAL INC.DBA AMPCO METAL INC |
| C-9A | 01DJ4 | AMPCO PARTNERS, LTD.DBA AMPCO SAFETY TOOLS |
Technical Data | NSN 5130-01-322-7805
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | WIDE |
| OVERALL LENGTH | 18.000 INCHES NOMINAL |
| CUTTING WIDTH | 3.000 INCHES NOMINAL |
| SHANK STYLE | STRAIGHT HEXAGON |
| SHANK WIDTH ACROSS FLATS | 1.125 INCHES NOMINAL |
| SPECIAL FEATURES | NONSPARKING/NONMAGNETIC |
