NSN 5130-01-221-1999
Part Details | POWER HAMMER CHISEL
5130-01-221-1999 A cutting tool having a formed shank designed for use with HAMMER, ELECTRIC, PORTABLE or HAMMER, PNEUMATIC, PORTABLE. Excludes masonry drills and all noncutting items, such as calking, beading, fulling, butting tools, and the like.
Alternate Parts: A133907, A-133907, 5130-01-221-1999, 01-221-1999, 5130012211999, 012211999
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | NOV 25, 1985 | 01-221-1999 | 05211 ( CHISEL, POWER HAMMER ) |

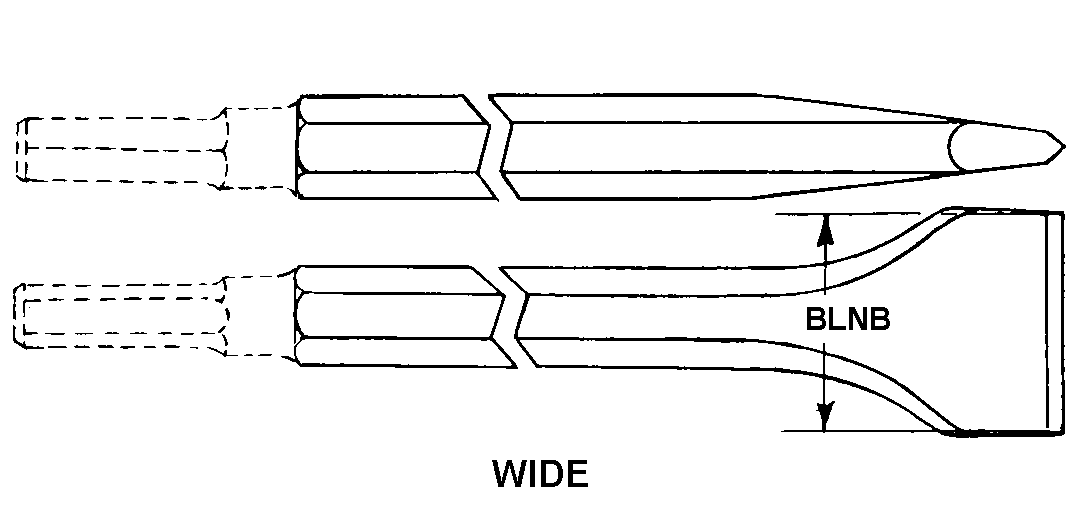

REFERENCE DRAWINGS & PICTURES
HEXAGON
WIDE
Cross Reference | NSN 5130-01-221-1999
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-133907 | 11976 | CHICAGO PNEUMATIC TOOL CO |
Technical Data | NSN 5130-01-221-1999
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | WIDE |
| CUTTING WIDTH | 1.750 INCHES NOMINAL |
| SHANK STYLE | 5 HEXAGON |
| DIAMETER | 0.401 INCHES NOMINAL |
| SPECIAL FEATURES | SCRAPER TYPE |
