NSN 4820-00-401-8085
Part Details | EXPANSION VALVE
4820-00-401-8085 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Alternate Parts: 13216E63621, 13216E6362-1, 4820004018085, DRP358R, DRP3-58R, 4820-00-401-8085, 00-401-8085, 4820004018085, 004018085
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAR 30, 1970 | 00-401-8085 | 05493 ( VALVE, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU

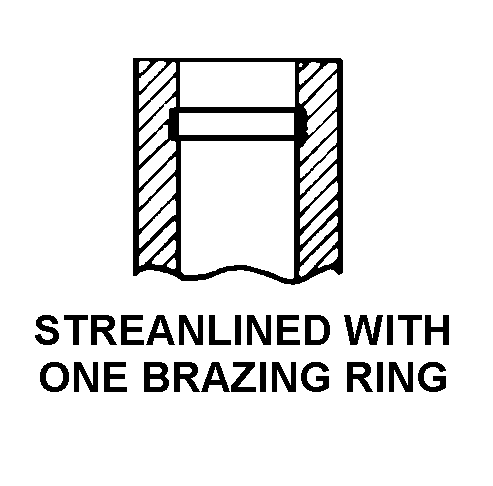

STREANLINED WITH ONE BRAZING RING
STREAMLINED WITH ONE BRAZING RING
STREANLINED WITH ONE BRAZING RING
STREANLINED WITH ONE BRAZING RING
Cross Reference | NSN 4820-00-401-8085
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13216E6362-1 | 97403 | CECOM LR CENTER |
| 4820004018085 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| DRP3-58R | 78462 | PARKER-HANNIFIN CORPORATIONDBA SPORLAN DIVISION |
Technical Data | NSN 4820-00-401-8085
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| BODY STYLE | STRAIGHT THRU |
| VALVE EQUALIZER LOCATION | INTERNAL |
| VALVE EXPANSION CONTROL TYPE | THERMOSTATIC |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| FLOW CONTROL DEVICE | PISTON, SPRING LOADED |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | STREANLINED WITH ONE BRAZING RING |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| VALVE EVAPORATOR TEMP RANGE DESIGNATION | HIGH |
| BULB MEDIA TYPE | DICHLORODIFLUOROMETHANE |
| CAPILLARY TUBE LENGTH | 60.000 INCHES NOMINAL |
| BULB LENGTH | 4.000 INCHES NOMINAL |
| BULB DIAMETER | 0.750 INCHES NOMINAL |
