NSN 4820-00-353-5136
Part Details | FLAT VALVE DIAPHRAGM
4820-00-353-5136 An item in the form of one or more thin flexible sheets normally designed to form a tight seal between chambers of a valve, and to transmit motion to a valve disk either directly or through a mechanical linkage. The surface of the item(s) may not be formed or molded to have a beaded or rolled edge, ribs, or any other raised surfaces. The item may contain bolt holes and/or a center hole. Excludes DIAPHRAGM, VALVE, SPECIAL SHAPED and GASKET.
Alternate Parts: 2AAB215, 2AAB215, 4820-00-353-5136, 00-353-5136, 4820003535136, 003535136
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1961 | 00-353-5136 | 60396 ( DIAPHRAGM, VALVE, FLAT ) |

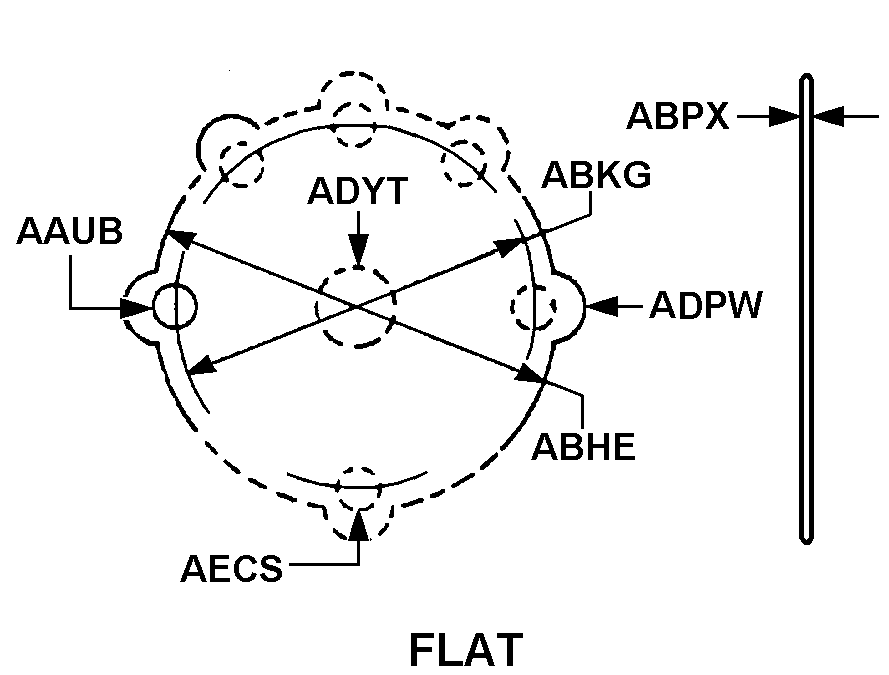

REFERENCE DRAWINGS & PICTURES
FLAT
Cross Reference | NSN 4820-00-353-5136
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2AAB215 | 24047 | COOPER INDUSTRIES INCDBA COOPER TOOLS |
| 2AAB215 | 6X081 | COOPER INDUSTRIESINDUSTRIAL MACHINERY DIV |
Technical Data | NSN 4820-00-353-5136
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC |
| STYLE DESIGNATOR | FLAT |
| HOLE DIAMETER | 0.370 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.000 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 3.728 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.125 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.355 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.125 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 6 |
| SUPPLEMENTARY FEATURES | ADDITIONAL MATERIAL: CLOTH |
