NSN 4820-00-345-8508
Part Details | EXPANSION VALVE
4820-00-345-8508 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Alternate Parts: 068H6200, EA06HB350, 68263K4, 4820-00-345-8508, 00-345-8508, 4820003458508, 003458508
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 20, 1974 | 00-345-8508 | 05493 ( VALVE, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU

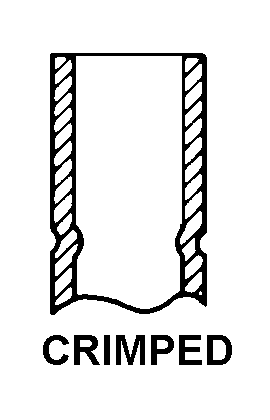

CRIMPED
CRIMPED
CRIMPED
CRIMPED
Cross Reference | NSN 4820-00-345-8508
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 068H6200 | 10855 | CARRIER CORPORATION |
| EA06HB350 | 10855 | CARRIER CORPORATION |
| 68263K4 | 10855 | CARRIER CORPORATION |
Technical Data | NSN 4820-00-345-8508
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| BODY STYLE | STRAIGHT THRU |
| VALVE EQUALIZER LOCATION | EXTERNAL |
| VALVE EXPANSION CONTROL TYPE | PRESSURE |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| FLOW CONTROL DEVICE | X ANY ACCEPTABLE |
| OUTSIDE SURFACE TREATMENT | ANODIZED |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | CRIMPED |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | CRIMPED |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES NOMINAL |
| CAPILLARY TUBE LENGTH | 60.000 INCHES NOMINAL |
| BULB MOUNTING METHOD | CLAMP |
| BULB LENGTH | 3.500 INCHES NOMINAL |
| BULB DIAMETER | 0.500 INCHES NOMINAL |
| VALVE EQUALIZER CONNECTION TYPE | SOLDER TUBE |
| VALVE EQUALIZER CONNECTION DIAMETER | 0.250 INCHES NOMINAL |
