NSN 4820-00-293-3659
Part Details | FOOT VALVE
4820-00-293-3659 A valve used on the free end of a suction line permitting flow in only one direction. It is always equipped with a strainer at the inlet end. See also VALVE, CHECK.
Alternate Parts: U8767, 4820-00-293-3659, 00-293-3659, 4820002933659, 002933659
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | AUG 07, 1980 | 00-293-3659 | 13762 ( VALVE, FOOT ) |
REFERENCE DRAWINGS & PICTURES

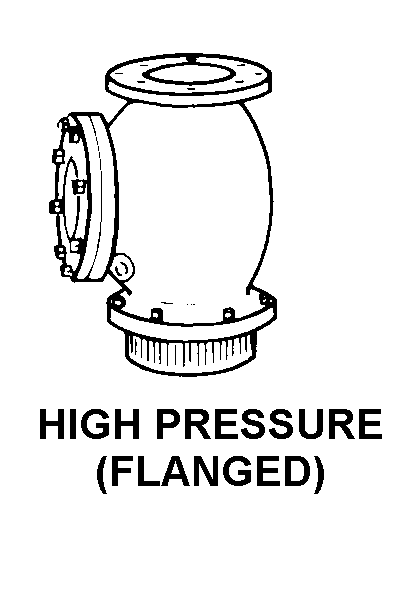

HIGH PRESSURE (FLANGED)
PLAIN
PLAIN
PLAIN
PLAIN
Cross Reference | NSN 4820-00-293-3659
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| U8767 | 28193 | HENRY TECHNOLOGIES INC. |
Technical Data | NSN 4820-00-293-3659
| Characteristic | Specifications |
|---|---|
| BODY STYLE | HIGH PRESSURE (FLANGED) |
| BODY MATERIAL | BRONZE |
| FLOW CONTROL DEVICE | V ANY ACCEPTABLE AND Y ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 2.250 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | PLAIN |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 2.375 INCHES NOMINAL |
