NSN 4820-00-287-4355
Part Details | EXPANSION VALVE
4820-00-287-4355 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Alternate Parts: 204251, 204-251, P1692, 204CA50600, 4820-00-287-4355, 00-287-4355, 4820002874355, 002874355
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1961 | 00-287-4355 | 05493 ( VALVE, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES

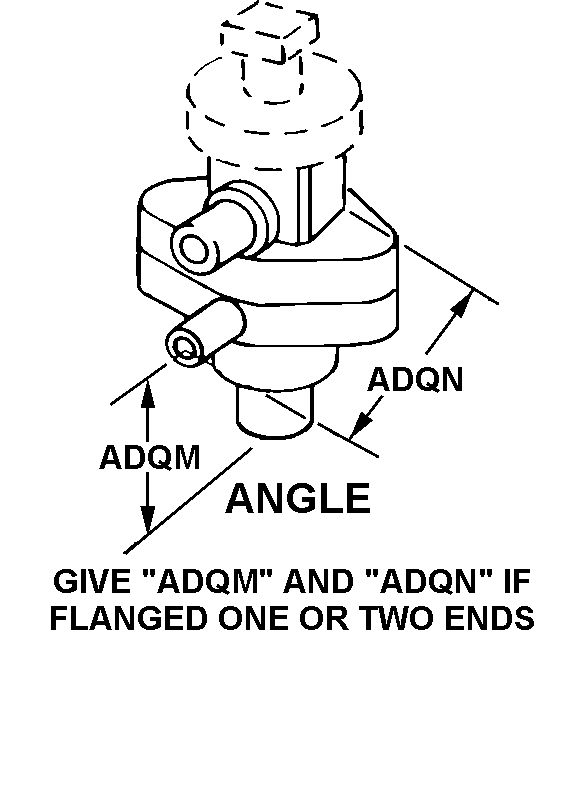

ANGLE GIVE "ADQM" AND "ADQN" IF FLANGED ONE OR TWO ENDS
SWIVEL NUT, FLARE
FLARED
SWIVEL NUT, FLARE
FLARED
SWIVEL NUT, FLARE
FLARED
SWIVEL NUT, FLARE
FLARED
Cross Reference | NSN 4820-00-287-4355
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-251 | 18163 | EATON CORP CONTROLS DIV |
| P1692 | 39130 | KOLPAK INDUSTRIES INCMC CALL REFRIGERATOR DIV |
| 204CA50600 | 91494 | SINGER CO THE CONTROLS DIV |
Technical Data | NSN 4820-00-287-4355
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| BODY STYLE | ANGLE GIVE "ADQM" AND "ADQN" IF FLANGED ONE OR TWO ENDS |
| REFRIGERATION CAPACITY IN BTU PER HOUR | 4.0 |
| VALVE EQUALIZER LOCATION | INTERNAL |
| VALVE EXPANSION CONTROL TYPE | PRESSURE |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| FLOW CONTROL DEVICE | ANY ACCEPTABLE |
| SEAT MATERIAL | STEEL, CORROSION RESISTING |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| STEM MATERIAL | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | FLARED |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES NOMINAL |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 45.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED INTERNAL PIPE |
| SECOND END STYLE DESIGNATOR | 1 SWIVEL NUT, FLARE |
| SECOND END NOMINAL PIPE SIZE ACCOMMODATED | 0.250 INCHES |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 12 |
| SPECIAL FEATURES | 15 IN. VACUUM TO 35 PSI ADJUSTABLE RANGE |
