NSN 4820-00-256-6662
Part Details | EXPANSION VALVE
4820-00-256-6662 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Alternate Parts: F23046, TCLN300FA4D, TCLN3FW4C38X580DFINT20FT, TCLN3FW4C3/8X5/80DFINT20FT, TCLN3FW38X580, TCLN3FW3/8X5/80, PCN035371, PCN035371, PCN035371, 4820-00-256-6662, 00-256-6662, 4820002566662, 002566662
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1963 | 00-256-6662 | 05493 ( VALVE, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES
ANGLE GIVE "ADQM" OR "ADQN" IF FLANGED ONE OR TWO ENDS
PLAIN

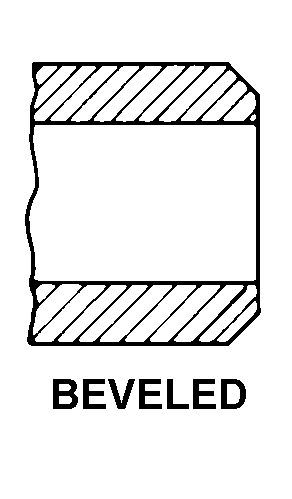

BEVELED
PLAIN
BEVELED
PLAIN
BEVELED
PLAIN
BEVELED
Cross Reference | NSN 4820-00-256-6662
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F23046 | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| TCLN300FA4D | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| TCLN3FW4C3/8X5/80DFINT20FT | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| TCLN3FW3/8X5/80 | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| PCN035371 | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| PCN035371 | 2B475 | PROGRESS SUPPLY, INC. |
| PCN035371 | 5K089 | WILLIAMS AND CO INC |
Technical Data | NSN 4820-00-256-6662
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| BODY STYLE | ANGLE GIVE "ADQM" OR "ADQN" IF FLANGED ONE OR TWO ENDS |
| REFRIGERATION CAPACITY IN BTU PER HOUR | 42.0 |
| VALVE EQUALIZER LOCATION | INTERNAL |
| VALVE EXPANSION CONTROL TYPE | THERMOSTATIC |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| TEMP RATING | 250.0 DEG FAHRENHEIT |
| FLOW CONTROL DEVICE | L ANY ACCEPTABLE |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE MATERIAL | STEEL |
| STEM MATERIAL | STEEL |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | BUTT WELD TUBE |
| FIRST END STYLE DESIGNATOR | BEVELED |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | PLAIN |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 12 |
| VALVE EVAPORATOR TEMP RANGE DESIGNATION | LOW |
| BULB MEDIA TYPE | REFRIGERANT 12 |
| CAPILLARY TUBE LENGTH | 240.000 INCHES NOMINAL |
| BULB MOUNTING METHOD | CLAMP |
| BULB LENGTH | 4.812 INCHES NOMINAL |
| BULB DIAMETER | 0.625 INCHES NOMINAL |
| SPECIAL FEATURES | MAX.PRESSURE 450 PSI |
