NSN 4820-00-247-8501
Part Details | CHECK VALVE
4820-00-247-8501 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Alternate Parts: AA3180PBX32, AA3-180PBX32, 4820-00-247-8501, 00-247-8501, 4820002478501, 002478501
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUN 29, 1973 | 00-247-8501 | 05487 ( VALVE, CHECK ) |
REFERENCE DRAWINGS & PICTURES

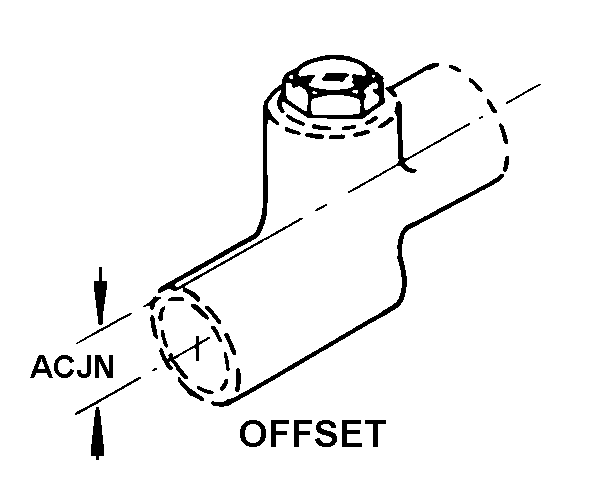

OFFSET
Cross Reference | NSN 4820-00-247-8501
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AA3-180PBX32 | 24785 | VICKERS INC |
Technical Data | NSN 4820-00-247-8501
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OFFSET |
| OFFSET DISTANCE | 1.125 INCHES |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | AUTOMATIC |
| MOUNTING POSITION | R$DVT |
| DISK LOADING METHOD | SPRING |
