NSN 4820-00-247-3306
Part Details | GASEOUS PRODUCTS PRESSURE EQUALIZING VALVE
4820-00-247-3306 A valve consisting of a single deadweight loaded disk, or two deadweight loaded disks each with a seperate seat. It is specifically designed for the relief of small pressure and vacuum conditions within a tank or other container to or from the atmosphere. The center of a single deadweight loaded disk may contain a spring loaded disk forming an additional seat or aperture. It may be spring loaded and/or equipped with a manual unloader on either the pressure or vacuum side. Exclude VALVE, VACUUM BREAKING.
Alternate Parts: FU3428, 4820-00-247-3306, 00-247-3306, 4820002473306, 002473306
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUL 07, 1969 | 00-247-3306 | 10958 ( VALVE, PRESSURE EQUALIZING, GASEOUS PRODUCTS ) |
REFERENCE DRAWINGS & PICTURES

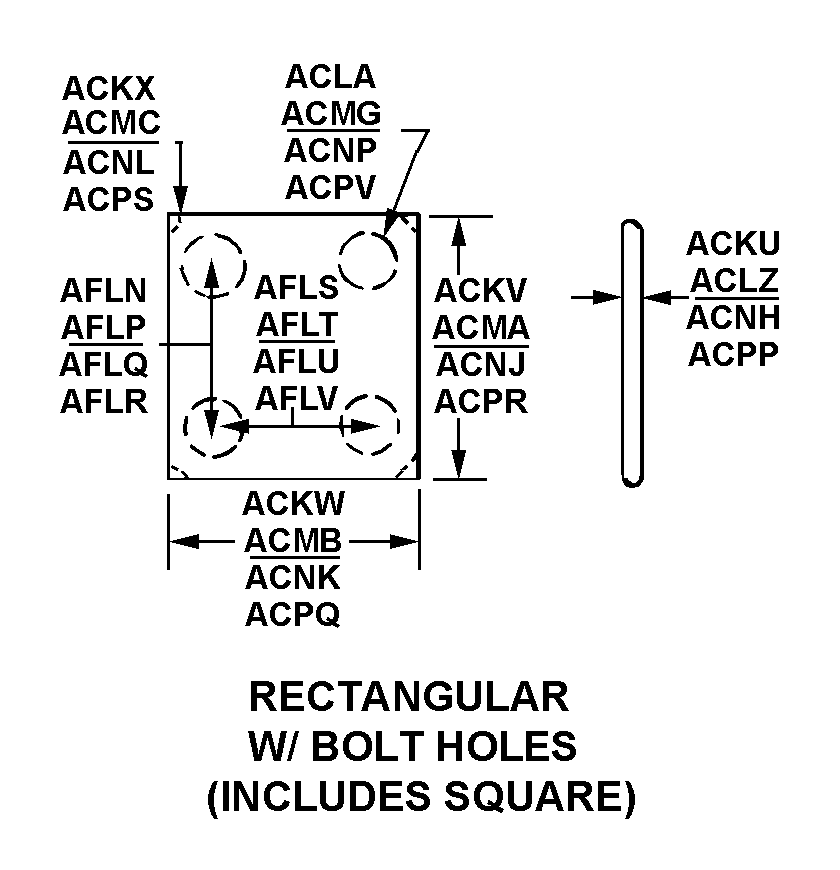

RECTANGULAR W/ BOLT HOLES (INCLUDES SQUARE)
RECTANGULAR W/ BOLT HOLES (INCLUDES SQUARE)
RECTANGULAR W/ BOLT HOLES (INCLUDES SQUARE)
RECTANGULAR W/ BOLT HOLES (INCLUDES SQUARE)
Cross Reference | NSN 4820-00-247-3306
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FU3428 | 79172 | SIEMENS WATER TECHNOLOGIES CORP.DIV WALLACE & TIERNAN PRODUCTS |
Technical Data | NSN 4820-00-247-3306
| Characteristic | Specifications |
|---|---|
| FIRST END CONNECTION TYPE | PLAIN FACE FLANGE |
| FIRST END FLANGE SHAPE STYLE | RECTANGULAR W/ BOLT HOLES (INCLUDES SQUARE) |
| FIRST END BOLT HOLE QUANTITY | 4 |
