NSN 4820-00-237-3495
Part Details | EXPANSION VALVE
4820-00-237-3495 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Alternate Parts: 3021314, ADRPE3, 604765, 4820-00-237-3495, 00-237-3495, 4820002373495, 002373495
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 05, 1972 | 00-237-3495 | 05493 ( VALVE, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES

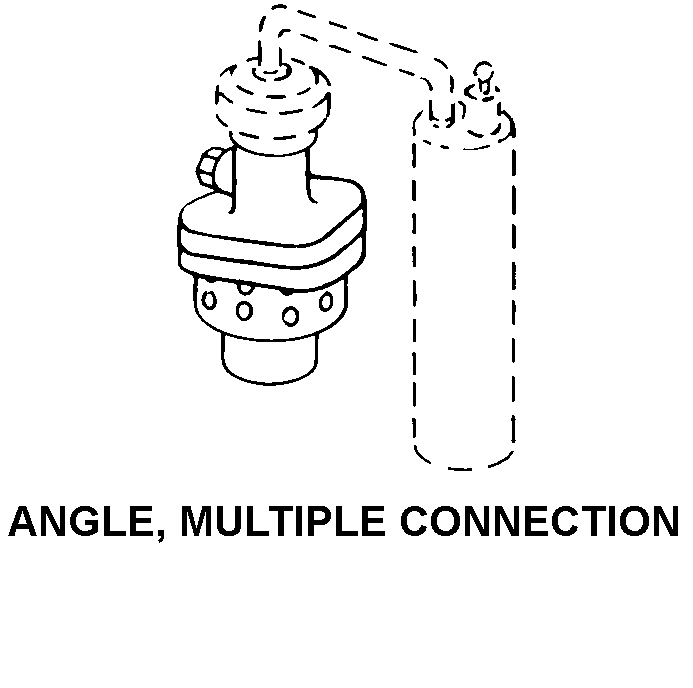

ANGLE, MULTIPLE CONNECTION
FLARED
FLARED
FLARED
FLARED
Cross Reference | NSN 4820-00-237-3495
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3021314 | U2096 | EBAC LIMITED |
| ADRPE3 | 78462 | PARKER-HANNIFIN CORPORATIONDBA SPORLAN DIVISION |
| 604765 | 09455 | RBC TRANSPORT DYNAMICS CORP.DIV RBC TRANSPORT DYNAMICS |
Technical Data | NSN 4820-00-237-3495
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| BODY STYLE | ANGLE, MULTIPLE CONNECTION |
| VALVE EQUALIZER LOCATION | EXTERNAL |
| VALVE EXPANSION CONTROL TYPE | THERMOSTATIC |
| FLOW CONTROL DEVICE | Q ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | FLARED |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 22 |
| BULB MOUNTING METHOD | CLAMP |
| VALVE EQUALIZER CONNECTION TYPE | FLARED TUBE |
