NSN 4820-00-235-2692
Part Details | FLUID PRESSURE REGULATING VALVE
4820-00-235-2692 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: NC8, 4820-00-235-2692, 00-235-2692, 4820002352692, 002352692
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUN 23, 1969 | 00-235-2692 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU

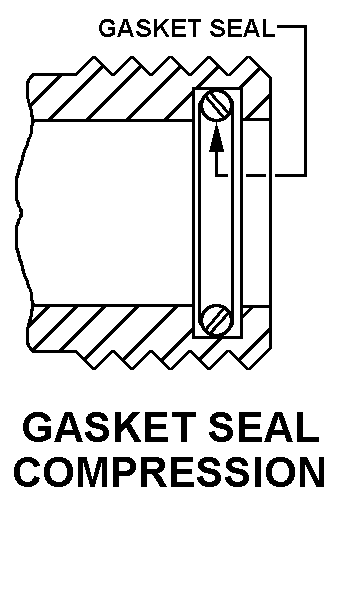

GASKET SEAL COMRESSION
INVERTED FLARE
GASKET SEAL COMRESSION
INVERTED FLARE
GASKET SEAL COMPRESSION
INVERTED FLARE
GASKET SEAL COMPRESSION
INVERTED FLARE
Cross Reference | NSN 4820-00-235-2692
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NC8 | 80149 | CALUMET PHOTOGRAPHIC, INC. |
Technical Data | NSN 4820-00-235-2692
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| FILTER | INCLUDED |
| FURNISHED ITEMS | CYLINDER GAGE AND DELIVERY GAGE |
| SPECIAL FEATURES | FURNISHED WITH 120.0 IN. HOSE ASSEMBLY |
| STEM MATERIAL | BRASS |
| FLOW CONTROL DEVICE | POPPET |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | INVERTED FLARE |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES NOMINAL |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 9 TO 16-18 UNF |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 30.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL GAS CYLINDER |
| SECOND END STYLE DESIGNATOR | 1 GASKET SEAL COMRESSION |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 15 TO 16-14 NGO |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END SEAT RADIUS | 0.750 INCHES NOMINAL |
| BODY STYLE | 2 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | JA ACETYLENE |
| REGULATION TYPE | MANUAL SINGLE STAGE |
| MANUAL CONTROL METHOD | TEE HANDLE |
| VALVE LOADING METHOD | SPRING |
