NSN 4820-00-230-3739
Part Details | FLUID PRESSURE REGULATING VALVE
4820-00-230-3739 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: 3320, 4820-00-230-3739, 00-230-3739, 4820002303739, 002303739
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | OCT 12, 1970 | 00-230-3739 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
ANGLE

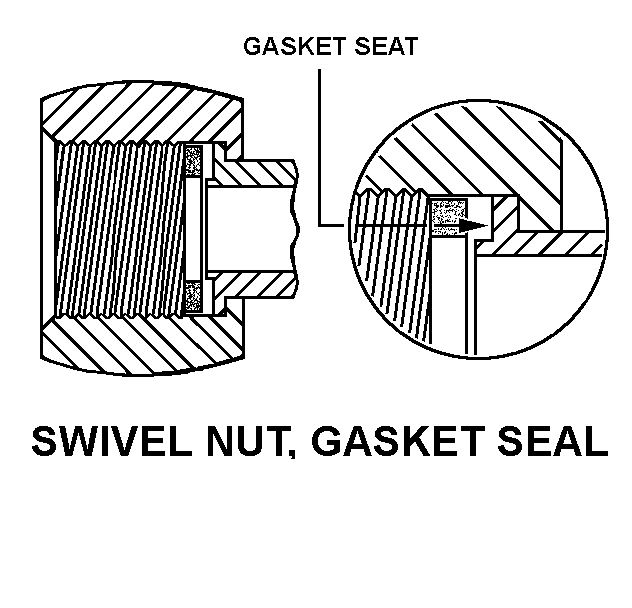

SWIVEL NUT, GASKET SEAL
PLAIN
SWIVEL NUT, GASKET SEAL
PLAIN
SWIVEL NUT, GASKET SEAL
PLAIN
SWIVEL NUT, GASKET SEAL
PLAIN
Cross Reference | NSN 4820-00-230-3739
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3320 | 96355 | MATHESON CODIV OF G D SEARLE MEDICAL PRODUCTS |
Technical Data | NSN 4820-00-230-3739
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| TEMP RATING | -20.0 DEG FAHRENHEIT MINIMUM AND 140.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH |
| FILTER | NOT INCLUDED |
| FURNISHED ITEMS | INLET PRESSURE GAGE AND OUTLET PRESSURE GAGE AND NUT AND SLEEVE |
| STEM MATERIAL | BRASS |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| OUTSIDE SURFACE TREATMENT | CHROMIUM |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | SWIVEL NUT, GASKET SEAL |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES NOMINAL |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.562-18 UNF |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| SECOND END STYLE DESIGNATOR | PLAIN |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.125-27 NPT |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| BODY STYLE | ANGLE |
| MEDIA FOR WHICH DESIGNED | GAS |
| REGULATION TYPE | MANUAL SINGLE STAGE |
| MANUAL CONTROL METHOD | WHEEL |
| VALVE STEM DESIGN | SINGLE SEAT |
| VALVE LOADING METHOD | SPRING |
| REMOTE ACTUATION METHOD | DIAPHRAGM |
