NSN 4820-00-229-8619
Part Details | FLUID PRESSURE REGULATING VALVE
4820-00-229-8619 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: M12278A, 0X515X1 38IN, 0X515X1 3-8IN, N920M12278A38, N920M12278A3-8, M12278ACP, 0X515X1 38INCP, 0X515X1 3-8INCP, N920M12278A38CP, N920M12278A3-8CP, 4820-00-229-8619, 00-229-8619, 4820002298619, 002298619
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAY 28, 1973 | 00-229-8619 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU

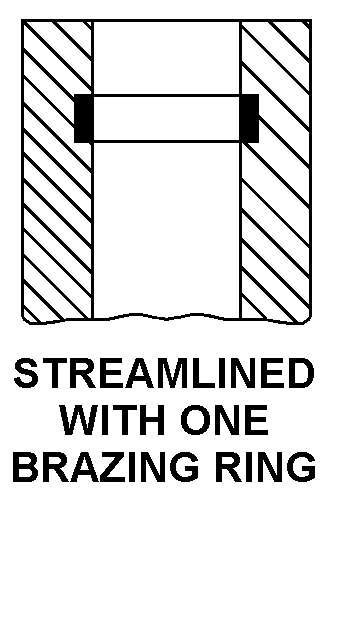

STREAMLINED WITH ONE BRAZING RING
STREAMLINED WITH ONE BRAZING RING
STREAMLINED WITH ONE BRAZING RING
STREAMLINED WITH ONE BRAZING RING
Cross Reference | NSN 4820-00-229-8619
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M12278A | 26505 | GROVE VALVE OPERATIONS |
| 0X515X1 3-8IN | 26505 | GROVE VALVE OPERATIONS |
| N920M12278A3-8 | 26505 | GROVE VALVE OPERATIONS |
| M12278ACP | 03950 | NAVAL INVENTORY CONTROL POINTMECHANICSBURG |
| 0X515X1 3-8INCP | 03950 | NAVAL INVENTORY CONTROL POINTMECHANICSBURG |
| N920M12278A3-8CP | 03950 | NAVAL INVENTORY CONTROL POINTMECHANICSBURG |
Technical Data | NSN 4820-00-229-8619
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| MAXIMUM INLET PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | CLEANING, PACKAGING, AND MARKING IAW MIL-STD-1330D |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| SEAT MATERIAL | STEEL, CORROSION RESISTING |
| FLOW CONTROL DEVICE | DISK, FLAT |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | STREAMLINED WITH ONE BRAZING RING |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.375 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | WATER, OIL OR GAS |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
| REMOTE ACTUATION METHOD | DIAPHRAGM |
