NSN 4820-00-227-0157
Part Details | FOOT VALVE
4820-00-227-0157 A valve used on the free end of a suction line permitting flow in only one direction. It is always equipped with a strainer at the inlet end. See also VALVE, CHECK.
Alternate Parts: MILV16720, 4820-00-227-0157, 00-227-0157, 4820002270157, 002270157
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1961 | 00-227-0157 | 13762 ( VALVE, FOOT ) |
REFERENCE DRAWINGS & PICTURES

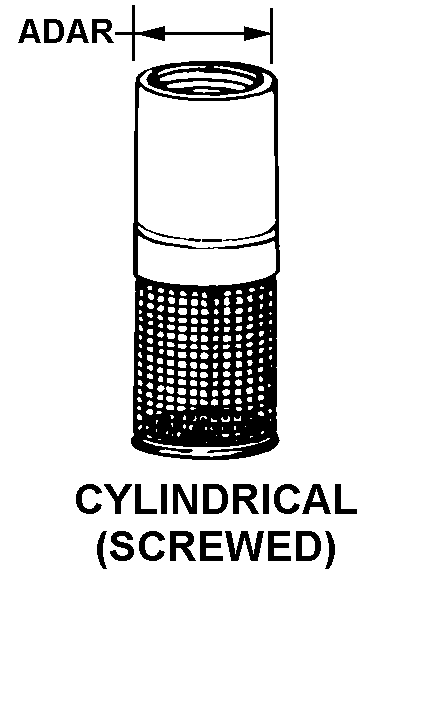

CYLINDRICAL (SCREWED)
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
Cross Reference | NSN 4820-00-227-0157
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILV16720 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 4820-00-227-0157
| Characteristic | Specifications |
|---|---|
| BODY STYLE | CYLINDRICAL (SCREWED) |
| BODY OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| BODY MATERIAL | BRASS, QQ-B-621, CLASS C-CANCELED |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE | W ANY ACCEPTABLE |
| FLOW CONTROL DEVICE MATERIAL | BRASS |
| END CONNECTION QUANTITY | 1 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | 1 SWIVEL NUT, FLARE |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| MAXIMUM OPERATING PRESSURE | 200.0 POUNDS PER SQUARE INCH |
| RENEWABLE SEAT RING TYPE | E ANY ACCEPTABLE |
| SPECIAL FEATURES | STRAINER ATTACHED |
| NONDEFINITIVE SPEC/STD DATA | 0.750 IN SIZE |
