NSN 4820-00-192-8383
Part Details | CALIBRATED FLOW VALVE
4820-00-192-8383 A valve specifically designed to automatically maintain a predetermined discharge flow rate which may be adjustable within a specific range. It is designed to be used with various fluids and may be preset and/or adjustable. It may be in-line or cartridge (manifold) design. Excludes VALVE, REGULATING, FEED WATER; VALVE, REGULATING, FLUID PRESSURE; VALVE, REGULATING, FUEL OIL; VALVE, REGULATING, OIL PRESSURE, AUTOMATIC PILOT; VAVLE, REGULATING, TEMPERATURE; VALVE, ANGLE; and VALVE, GLOBE.
Alternate Parts: 311103888, 311103-888, 311103, 4820-00-192-8383, 00-192-8383, 4820001928383, 001928383
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAR 11, 1973 | 00-192-8383 | 33212 ( VALVE, CALIBRATED FLOW ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU
GASKET SEAL

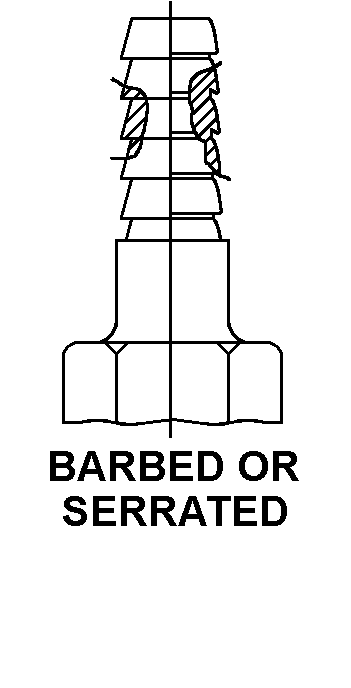

BARBED OR SERRATED
GASKET SEAL
BARBED OR SERRATED
GASKET SEAL
BARBED OR SERRATED
GASKET SEAL
BARBED OR SERRATED
Cross Reference | NSN 4820-00-192-8383
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 311103-888 | 51267 | IMI CORNELIUS INC. |
| 311103 | 51267 | IMI CORNELIUS INC. |
Technical Data | NSN 4820-00-192-8383
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY AND PLASTIC |
| FLOW CONTROL DEVICE | DISK, FLAT |
| FLOW CONTROL DEVICE MATERIAL | RUBBER |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL HOSE |
| FIRST END STYLE DESIGNATOR | BARBED OR SERRATED |
| FIRST END OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.125 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED INTERNAL BOSS |
| SECOND END STYLE DESIGNATOR | GASKET SEAL |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.438-20 UNF |
| SECOND END THREAD CLASS | 2B |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| BODY STYLE | STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | AIR |
