NSN 4820-00-136-7290
Part Details | VACUUM REGULATING VALVE
4820-00-136-7290 A device designed to regulate vacuum within the desired operating limits. See also VALVE, VACUUM BREAKING.
Alternate Parts: 854066, 854066, 4820-00-136-7290, 00-136-7290, 4820001367290, 001367290
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 20, 1969 | 00-136-7290 | 27489 ( VALVE, VACUUM REGULATING ) |
REFERENCE DRAWINGS & PICTURES

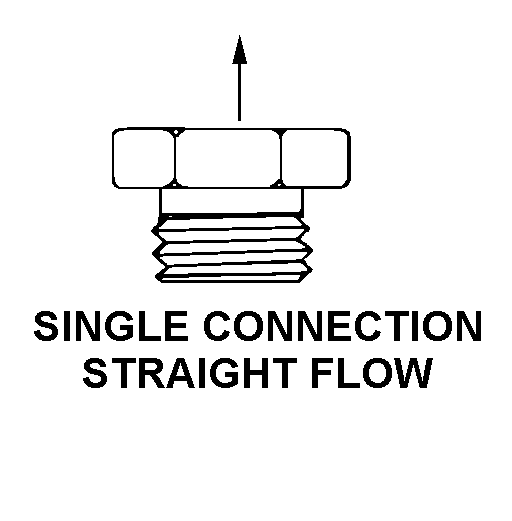

SINGLE CONNECTION, STRAIGHT FLOW
PLAIN
PLAIN
PLAIN
PLAIN
Cross Reference | NSN 4820-00-136-7290
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 854066 | 62035 | BECHDON COMPANY, THE |
| 854066 | 06141 | L3 AVIATION PRODUCTS, INC. |
Technical Data | NSN 4820-00-136-7290
| Characteristic | Specifications |
|---|---|
| BODY STYLE | SINGLE CONNECTION, STRAIGHT FLOW |
| BODY MATERIAL | ANY ACCEPTABLE |
| OUTSIDE SURFACE TREATMENT | ANY ACCEPTABLE |
| SEAT MATERIAL | ANY ACCEPTABLE |
| FLOW CONTROL DEVICE | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 1 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
