NSN 4820-00-134-4504
Part Details | POPPET DRAIN COCK
4820-00-134-4504 An item designed to drain fluids from fuel systems, tanks, filters, or similar items. It has a mounting end, a free flowing end, and a quick-acting nonmetallic sealed closure, usually spring loaded, that holds it in an "off" position. It requires no lubrication other than from the fluid being drained.
Alternate Parts: 967B12, 205062657, 205-062-657, 2050626571, 205-062-657-1, 205062657001, 205-062-657-001, A4403, A440-3, 4820-00-134-4504, 00-134-4504, 4820001344504, 001344504
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | DEC 03, 1969 | 00-134-4504 | 16989 ( COCK, POPPET DRAIN ) |
REFERENCE DRAWINGS & PICTURES

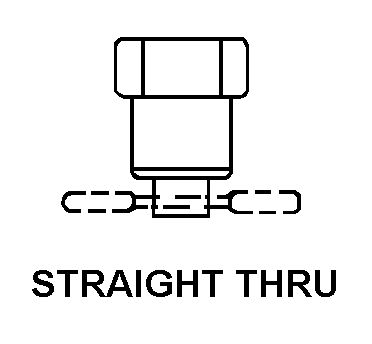

STRAIGHT THRU
Cross Reference | NSN 4820-00-134-4504
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 967B12 | 91511 | AUTO-VALVE, INC. |
| 205-062-657 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 205-062-657-1 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 205-062-657-001 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| A440-3 | 99321 | PARKER-HANNIFIN CORPORATIONDBA FLUID SYSTEMS DIVISION |
Technical Data | NSN 4820-00-134-4504
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| VALVE OPERATION METHOD | MANUAL |
| RENEWABLE SEAT RING TYPE | PRESSED-IN |
| FURNISHED ITEMS AND QUANTITY | 1 PLUGGED DRAIN AND 1 NUT |
