NSN 4820-00-134-4248
Part Details | VACUUM BREAKING VALVE
4820-00-134-4248 An item designed to automatically relieve vacuum, by the intake of air, when the internal pressure falls below atmospheric pressure. See also VALVE, VACUUM REGULATING.
Alternate Parts: 0624B0280, V1128M, V1128M, V1-12-8M, 6711020, 6711-020, 4820-00-134-4248, 00-134-4248, 4820001344248, 001344248
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUL 18, 1969 | 00-134-4248 | 08101 ( VALVE, VACUUM BREAKING ) |
REFERENCE DRAWINGS & PICTURES

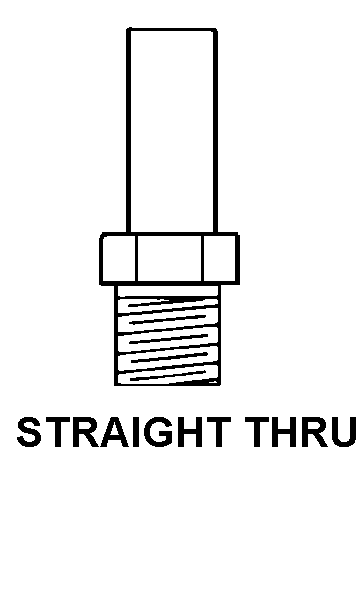

STRAIGHT THRU
PLAIN
PLAIN
PLAIN
PLAIN
Cross Reference | NSN 4820-00-134-4248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0624B0280 | 55207 | ARROW-MASTER, INCORPORATED |
| V1128M | 91561 | PARKER HANNIFIN CORPORATIONDBA QUICK COUPLING DIV DIV QUICK |
| V1-12-8M | 91561 | PARKER HANNIFIN CORPORATIONDBA QUICK COUPLING DIV DIV QUICK |
| 6711-020 | 91561 | PARKER HANNIFIN CORPORATIONDBA QUICK COUPLING DIV DIV QUICK |
Technical Data | NSN 4820-00-134-4248
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT THRU |
| BODY MATERIAL | STEEL |
| FLOW CONTROL DEVICE | W ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 1 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| TEMP ADJUSTABILITY | ADJUSTABLE |
| MEDIA FOR WHICH DESIGNED | AIR |
| ABSOLUTE PRESSURE RANGE | P0.0/P0.3 |
| SPECIAL FEATURES | SPRING LOADED POPPET |
