NSN 4820-00-131-6780
Part Details | FLUID PRESSURE REGULATING VALVE
4820-00-131-6780 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: 1301F, FS1301F3, FS1301F-3, 1301F3, 1301F-3, 1301F, 1301F, 64A92B927, 64A92B927, 1301F, 4820-00-131-6780, 00-131-6780, 4820001316780, 001316780
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | DEC 11, 1968 | 00-131-6780 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES

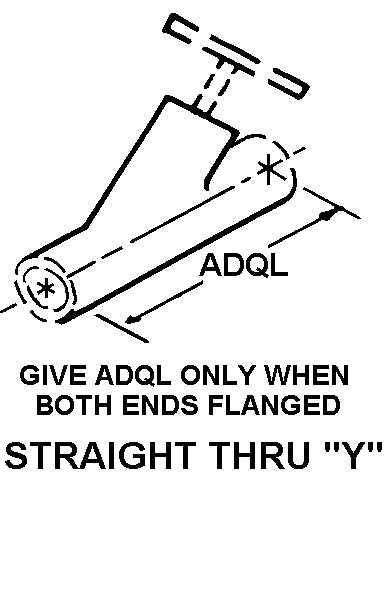

STRAIGHT THRU Y
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
Cross Reference | NSN 4820-00-131-6780
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1301F | 22508 | FISHER CONTROLS CO INC |
| FS1301F-3 | 22508 | FISHER CONTROLS CO INC |
| 1301F-3 | 22508 | FISHER CONTROLS CO INC |
| 1301F | 26819 | FISHER CONTROLS CO INC |
| 1301F | 85046 | FISHER CONTROLS INTERNATIONAL INCCLIFFORD B IVES AND CO INC |
| 64A92B927 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 64A92B927 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| 1301F | 58046 | PHILIPS DENTAL SYSTEMSDIV OF PHILIPS MEDICAL SYSTEMS INC |
Technical Data | NSN 4820-00-131-6780
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| TEMP RATING | -20.0 DEG FAHRENHEIT MINIMUM AND 180.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 500.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | +100.0 TO +225.0 POUNDS PER SQUARE INCH |
| FILTER | NOT INCLUDED |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | 1 SWIVEL NUT, FLARE |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1 TO 4-18 NPT |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
| BODY STYLE | STRAIGHT THRU Y |
| MEDIA FOR WHICH DESIGNED | AIR |
| REGULATION TYPE | MANUAL SINGLE STAGE |
| MANUAL CONTROL METHOD | SCREW |
| VALVE LOADING METHOD | DOME |
| REMOTE ACTUATION METHOD | DIAPHRAGM |
