NSN 4820-00-128-9797
Part Details | SADDLE VALVE
4820-00-128-9797 A valve with an outlet end connection, straight thru or at an angle. The flow of liquid or gases may be controlled by the action of stem which lifts the disks perpendicularly off the center axis of its seat or by rotation of a suitable ported seat. This valve has a connection facility which is saddled over a line and bolted, may be line drilled or line self piercing.
Alternate Parts: 1469, AP2, AP-2, AP2, AP-2, BPV21, 4820-00-128-9797, 00-128-9797, 4820001289797, 001289797
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | DEC 04, 1968 | 00-128-9797 | 35934 ( VALVE, SADDLE ) |
REFERENCE DRAWINGS & PICTURES

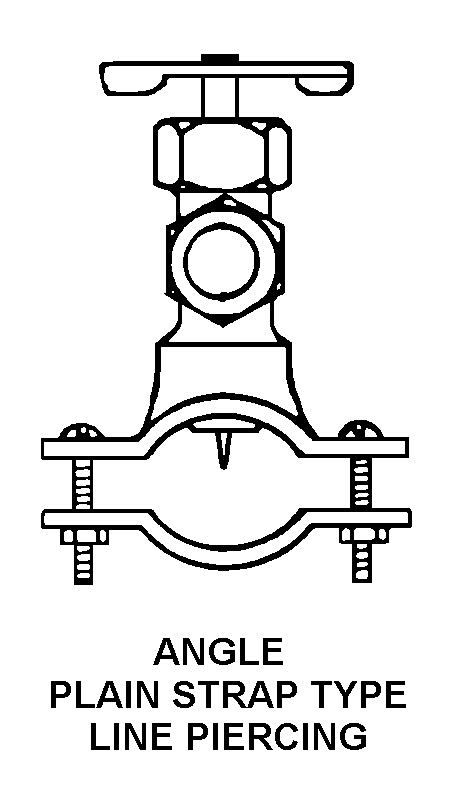

ANGLE PLAIN STRAP TYPE LINE PIERCING
Cross Reference | NSN 4820-00-128-9797
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1469 | 70334 | ALTER HARRY CO THEDIV OF T E C |
| AP-2 | 17529 | OASIS CONSTRUCTIONDIV SUPPLIES |
| AP-2 | 87732 | UNITED REFRIGERATION, INC. |
| BPV21 | 87732 | UNITED REFRIGERATION, INC. |
Technical Data | NSN 4820-00-128-9797
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE PLAIN STRAP TYPE LINE PIERCING |
| FLOW CONTROL DEVICE | NEEDLE |
| VALVE OPERATION METHOD | MANUAL |
| FURNISHED ITEMS AND QUANTITY | 1 REDUCER |
| SPECIAL FEATURES | FOR 3/8,1/2,OR 5/8 IN. TUBE OD |
