NSN 4820-00-126-5114
Part Details | FOOT VALVE
4820-00-126-5114 A valve used on the free end of a suction line permitting flow in only one direction. It is always equipped with a strainer at the inlet end. See also VALVE, CHECK.
Alternate Parts: NFES 0212, 51003831.5 9H, 5100-383-1.5 9H, 5A202, 4820-00-126-5114, 00-126-5114, 4820001265114, 001265114
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAR 01, 1975 | 00-126-5114 | 13762 ( VALVE, FOOT ) |
REFERENCE DRAWINGS & PICTURES
SINGLE CONNECTION, STRAIGHT FLOW

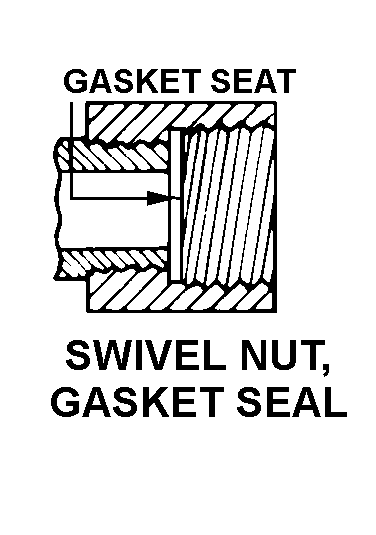

SWIVEL NUT, GASKET SEAL
SWIVEL NUT, GASKET SEAL
SWIVEL NUT, GASKET SEAL
SWIVEL NUT, GASKET SEAL
Cross Reference | NSN 4820-00-126-5114
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NFES 0212 | 04024 | FOREST SERVICE SPECIFICATIONSPROMULGATED BY UNITED STATES |
| 5100-383-1.5 9H | 31BV4 | FOREST SERVICEDBA TECHNOLOGY & DEVELOPMENT CENTER |
| 5A202 | 87475 | WESTERN FIRE EQUIPMENT COSUB OF PREMIER INDUSTRIAL CORP |
Technical Data | NSN 4820-00-126-5114
| Characteristic | Specifications |
|---|---|
| BODY STYLE | SINGLE CONNECTION, STRAIGHT FLOW |
| BODY MATERIAL | 0$DBR0000 |
| FLOW CONTROL DEVICE | W ANY ACCEPTABLE |
| FLOW CONTROL DEVICE MATERIAL | 0$DSTB000$DPC0000 |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | SWIVEL NUT, GASKET SEAL |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 1.500 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| MEDIA FOR WHICH DESIGNED | WATER, FRESH |
