NSN 4820-00-116-3226
Part Details | SPECIAL SHAPED ACTUATOR VALVE DIAPHRAGM
4820-00-116-3226 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.
Alternate Parts: 4S7458, IPD4S7458, 1634313, 16634313, 4820-00-116-3226, 00-116-3226, 4820001163226, 001163226
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | SEP 27, 1968 | 00-116-3226 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |
REFERENCE DRAWINGS & PICTURES

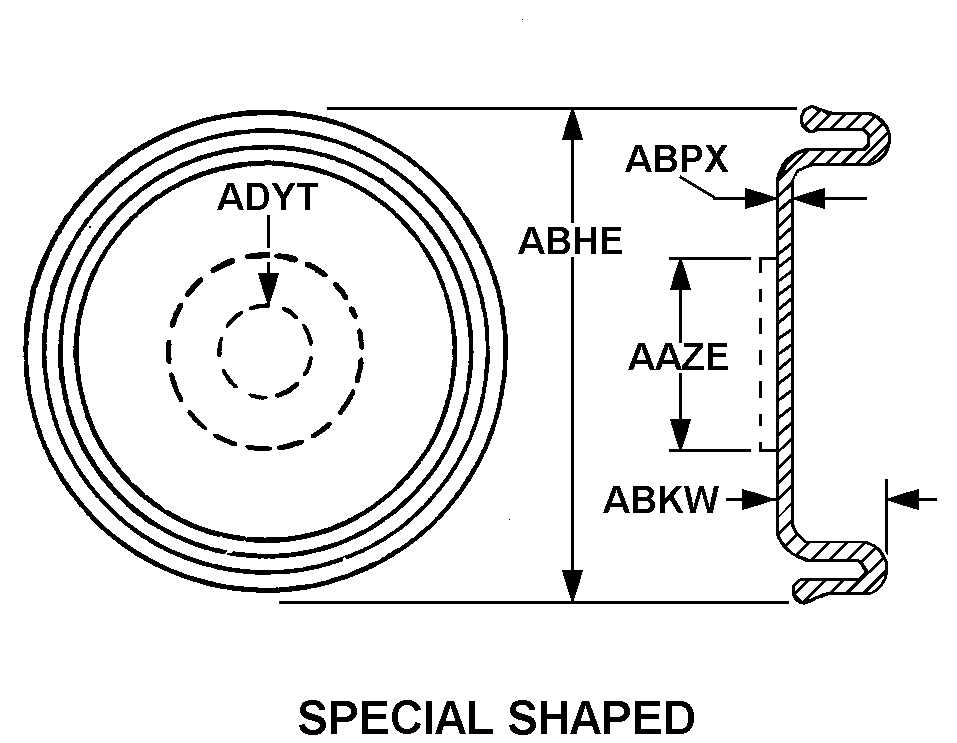

SPECIAL SHAPED
Cross Reference | NSN 4820-00-116-3226
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4S7458 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| IPD4S7458 | 55883 | INDUSTRIAL PARTS DEPOT, LLCDBA IPD |
| 1634313 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 16634313 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4820-00-116-3226
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC |
| STYLE DESIGNATOR | SPECIAL SHAPED |
| OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.530 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.045 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.375 INCHES NOMINAL |
