NSN 4820-00-111-2519
Part Details | PNEUMATIC TANK VALVE
4820-00-111-2519 A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil.
Alternate Parts: 30517304, 3051730-4, 3051730, 73051730, 4820-00-111-2519, 00-111-2519, 4820001112519, 001112519
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | AUG 16, 1968 | 00-111-2519 | 06509 ( VALVE, PNEUMATIC TANK ) |
REFERENCE DRAWINGS & PICTURES

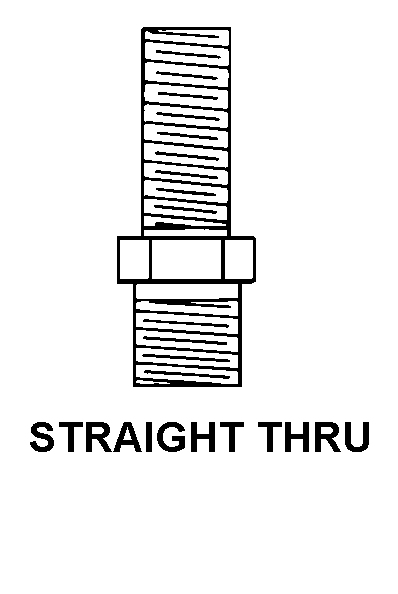

STRAIGHT THRU
GASKET SEAL COMPRESSION
PLAIN
GASKET SEAL COMPRESSION
PLAIN
GASKET SEAL COMPRESSION
PLAIN
GASKET SEAL COMPRESSION
PLAIN
Cross Reference | NSN 4820-00-111-2519
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3051730-4 | 89926 | NEW HOLLAND CONSTRUCTION |
| 3051730 | 89926 | NEW HOLLAND CONSTRUCTION |
| 73051730 | 89926 | NEW HOLLAND CONSTRUCTION |
Technical Data | NSN 4820-00-111-2519
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT THRU |
| BODY MATERIAL | BRASS |
| FLOW CONTROL DEVICE | CORE |
| FLOW CONTROL DEVICE MATERIAL | BRASS |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.125 INCHES NOMINAL |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL BOSS |
| SECOND END STYLE DESIGNATOR | 0 GASKET SEAL COMPRESSION |
| SECOND END THREAD CLASS | 2A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| MEDIA FOR WHICH DESIGNED | AIR |
| COMMERCIAL CORE LENGTH DESIGNATOR | SHORT |
| COMMERCIAL SPRING TENSION RATING | NOT RATED |
| SPECIAL FEATURES | ITEM HAS HX WRENCHING FEATURE 0.530 IN. ACROSS FLATS |
