NSN 4820-00-110-6217
Part Details | POPPET DRAIN COCK
4820-00-110-6217 An item designed to drain fluids from fuel systems, tanks, filters, or similar items. It has a mounting end, a free flowing end, and a quick-acting nonmetallic sealed closure, usually spring loaded, that holds it in an "off" position. It requires no lubrication other than from the fluid being drained.
Alternate Parts: K27671, K-2767-1, S6130630672, S6130-63067-2, 4820-00-110-6217, 00-110-6217, 4820001106217, 001106217
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | AUG 14, 1968 | 00-110-6217 | 16989 ( COCK, POPPET DRAIN ) |
REFERENCE DRAWINGS & PICTURES

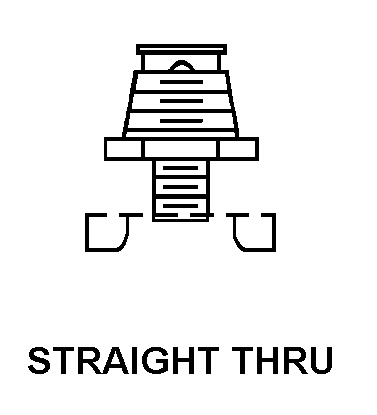

STRAIGHT THRU
Cross Reference | NSN 4820-00-110-6217
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K-2767-1 | 55469 | ESSEX INDUSTRIES, INC. |
| S6130-63067-2 | 78286 | SIKORSKY AIRCRAFT CORPORATIONDBA SIKORSKY |
Technical Data | NSN 4820-00-110-6217
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | 0 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| VALVE OPERATION METHOD | MANUAL |
