NSN 4820-00-107-0992
Part Details | EXPANSION VALVE
4820-00-107-0992 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Alternate Parts: TCL14CW38X580DFANG5FTIE, TCL1/4CW3/8X5/80DFANG5FTIE, TCL14CW38X580DFANGSFTIE, TCL1/4CW3/8X5/80DFANGSFTIE, TCL25C15AXB1019CL1A, TCL25CL, 4820-00-107-0992, 00-107-0992, 4820001070992, 001070992
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUL 24, 1968 | 00-107-0992 | 05493 ( VALVE, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES
ANGLE GIVE "ADQM" OR "ADQN" IF FLANGED ONE OR TWO ENDS
SOCKET

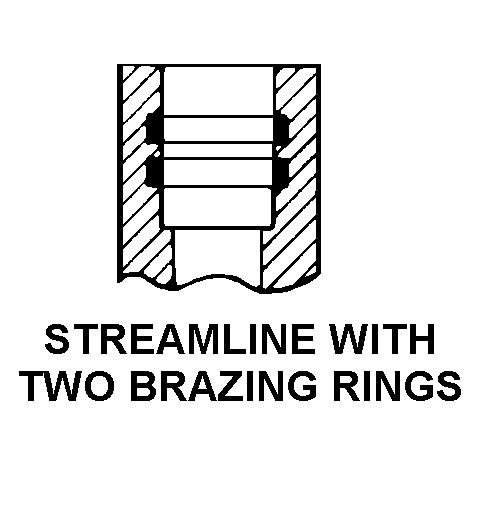

STREAMLINE WITH TWO BRAZING RINGS
SOCKET
STREAMLINE WITH TWO BRAZING RINGS
SOCKET
STREAMLINE WITH TWO BRAZING RINGS
SOCKET
STREAMLINE WITH TWO BRAZING RINGS
Cross Reference | NSN 4820-00-107-0992
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TCL1/4CW3/8X5/80DFANG5FTIE | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| TCL1/4CW3/8X5/80DFANGSFTIE | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| TCL25C15AXB1019CL1A | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| TCL25CL | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
Technical Data | NSN 4820-00-107-0992
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| BODY STYLE | ANGLE GIVE "ADQM" OR "ADQN" IF FLANGED ONE OR TWO ENDS |
| REFRIGERATION CAPACITY IN BTU PER HOUR | 3.0 |
| VALVE EQUALIZER LOCATION | INTERNAL |
| VALVE EXPANSION CONTROL TYPE | THERMOSTATIC |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| TEMP RATING | 300.0 DEG FAHRENHEIT |
| FLOW CONTROL DEVICE | CAGE |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE MATERIAL | BRASS |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | SOCKET |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | STREAMLINE WITH TWO BRAZING RINGS |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 500 |
| VALVE EVAPORATOR TEMP RANGE DESIGNATION | LOW |
| BULB MEDIA TYPE | REFRIGERANT 500 |
| CAPILLARY TUBE LENGTH | 60.000 INCHES NOMINAL |
| BULB MOUNTING METHOD | CLAMP |
| BULB LENGTH | 3.062 INCHES NOMINAL |
| BULB DIAMETER | 0.625 INCHES NOMINAL |
