NSN 4820-00-106-1973
Part Details | EXPANSION VALVE
4820-00-106-1973 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Alternate Parts: 400260005, 400-260-005, 13214E3742, 104505, 104-505, 104581, 104-581, 70034181, 70034-181, 104581, 104-581, R6617243742, 4820-00-106-1973, 00-106-1973, 4820001061973, 001061973
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUL 12, 1968 | 00-106-1973 | 05493 ( VALVE, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES
ANGLE GIVE "ADQM" OR "ADQN" IF FLANGED ONE OR TWO ENDS
PLAIN

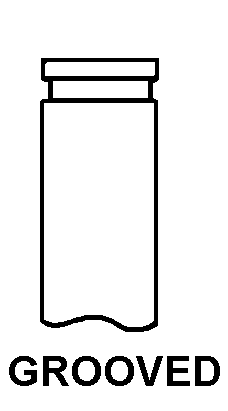

GROOVED
PLAIN
GROOVED
PLAIN
GROOVED
PLAIN
GROOVED
Cross Reference | NSN 4820-00-106-1973
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 400-260-005 | U5351 | AIRCONTROL TECHNOLOGIES |
| 13214E3742 | 97403 | CECOM LR CENTER |
| 104-505 | 18163 | EATON CORP CONTROLS DIV |
| 104-581 | 18163 | EATON CORP CONTROLS DIV |
| 70034-181 | 91494 | SINGER CO THE CONTROLS DIV |
| 104-581 | 91494 | SINGER CO THE CONTROLS DIV |
| R6617243742 | 60144 | UNIFAB INDUSTRIES INC |
Technical Data | NSN 4820-00-106-1973
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| BODY STYLE | ANGLE GIVE "ADQM" OR "ADQN" IF FLANGED ONE OR TWO ENDS |
| REFRIGERATION CAPACITY IN BTU PER HOUR | 12.0 |
| VALVE EQUALIZER LOCATION | INTERNAL |
| VALVE EXPANSION CONTROL TYPE | PRESSURE |
| VALVE PRESSURE LIMITING DEVICE | INCLUDED |
| TEMP RATING | 40.0 DEG FAHRENHEIT |
| FLOW CONTROL DEVICE | ANY ACCEPTABLE |
| SEAT MATERIAL | STEEL, CORROSION RESISTING |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | GROOVED |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | PLAIN |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 22 |
| VALVE PRESSURE LIMITING DEVICE SETTING | 58.0 POUNDS PER SQUARE INCH GAGE |
| VALVE PRESSURE LIMITING DEVICE RANGE | +0.0 TO +80.0 POUNDS PER SQUARE INCH GAGE |
