NSN 4820-00-106-0401
Part Details | PLUG VALVE
4820-00-106-0401 A valve designed to control the flow of a fluid by the rotation of a ported plug or plug sector within a suitable ported seat. The plug requires lubrication for ease of operation or contains a bonded composition seal(s). See also VALVE, SEATLESS and COCK, PLUG.
Alternate Parts: 462241, T45M3V12IN, T45M3V-1/2IN, T45M3V12IN, T45M3V-1/2IN, 4820-00-106-0401, 00-106-0401, 4820001060401, 001060401
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUL 10, 1968 | 00-106-0401 | 05490 ( VALVE, PLUG ) |
REFERENCE DRAWINGS & PICTURES

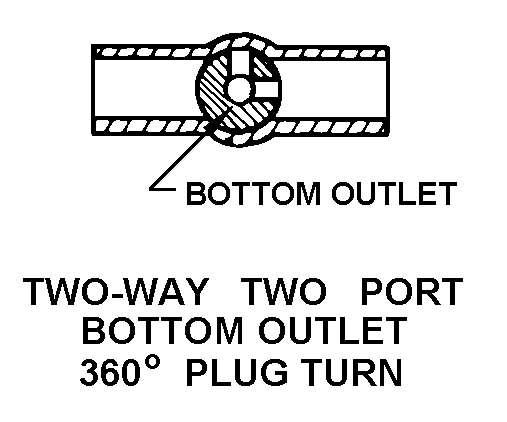

TWO-WAY TWO PORT BOTTOM OUTLET 360 DEGREE PLUG TURN
Cross Reference | NSN 4820-00-106-0401
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 462241 | 19139 | EASTMAN KODAK COMPANYDBA KODAK |
| T45M3V-1/2IN | 14007 | NIBCO INC |
| T45M3V-1/2IN | 61623 | NIBCO INCCHEMTROL DIV |
Technical Data | NSN 4820-00-106-0401
| Characteristic | Specifications |
|---|---|
| FLOW STYLE | TWO-WAY TWO PORT BOTTOM OUTLET 360 DEGREE PLUG TURN |
| VALVE OPERATION METHOD | MANUAL |
